10x20 horse barn plans 10x20 Horse Barn Plans
sku (shed10x20 HBLT-WF)

Emailed Plans: $29.99
(8 1/2" x 11" emailed PDF)

Postal Mailed Plans: $35.99
(8 1/2" x 11" postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 10x20 2 Stall Horse Barn Plans Include:

  • Post and Beam Construction - Our run in shed uses common post and beam construction.
  • Sliding Doors - Door plans included for hanging - sliding barn doors
  • Metal Grate Option - The metal grate shown in the images is optional and may be installed on one, both or neither of the stalls.
  • Kickboards - Siding and kick boards help keep your run in shed strength and durability. You may use 2x6 pine boards or 1x8 oak boards or 3/4" Plywood.

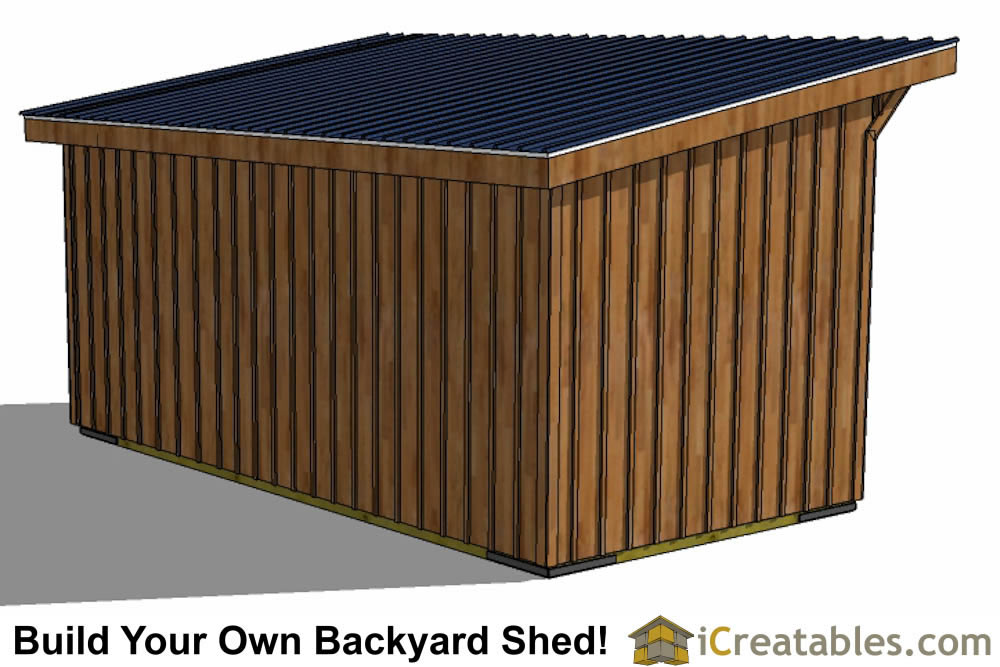

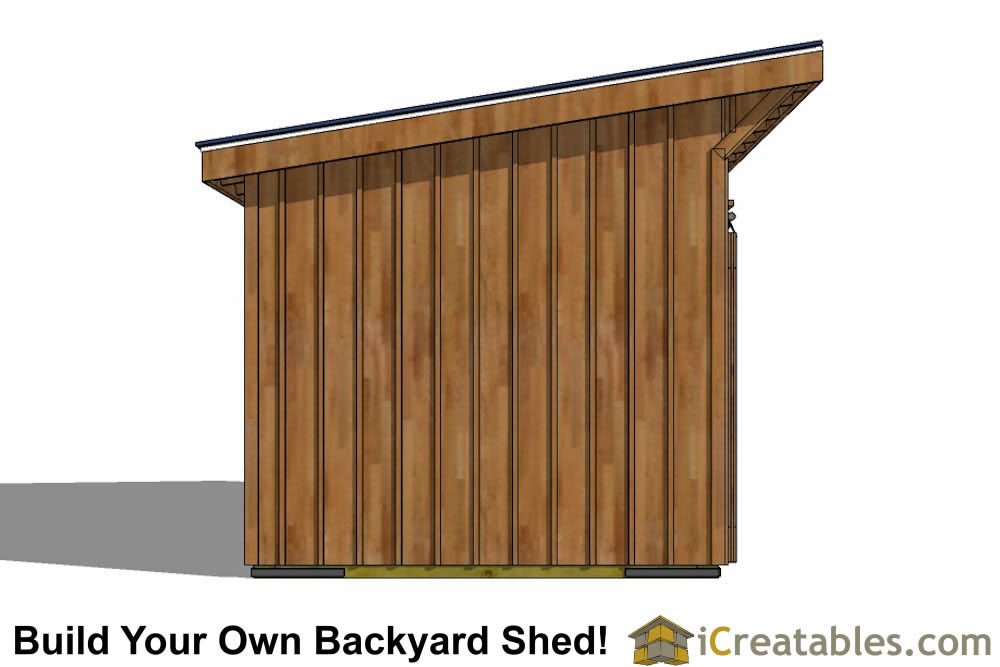

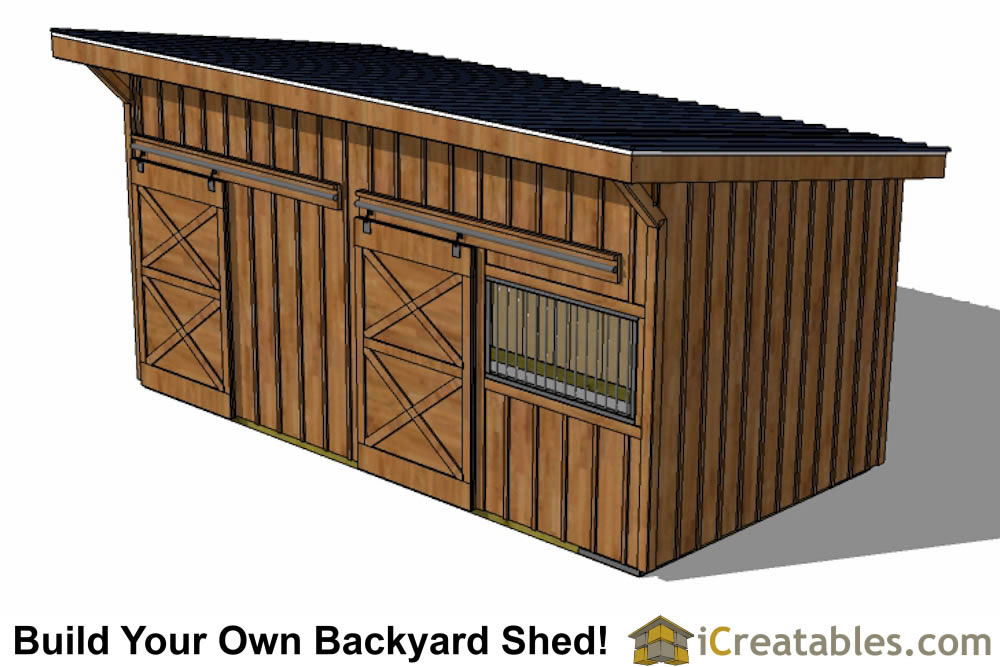

10x20 horse barn plans left elevation10x20 horse barn plans left rear10x20 horse barn plans top view

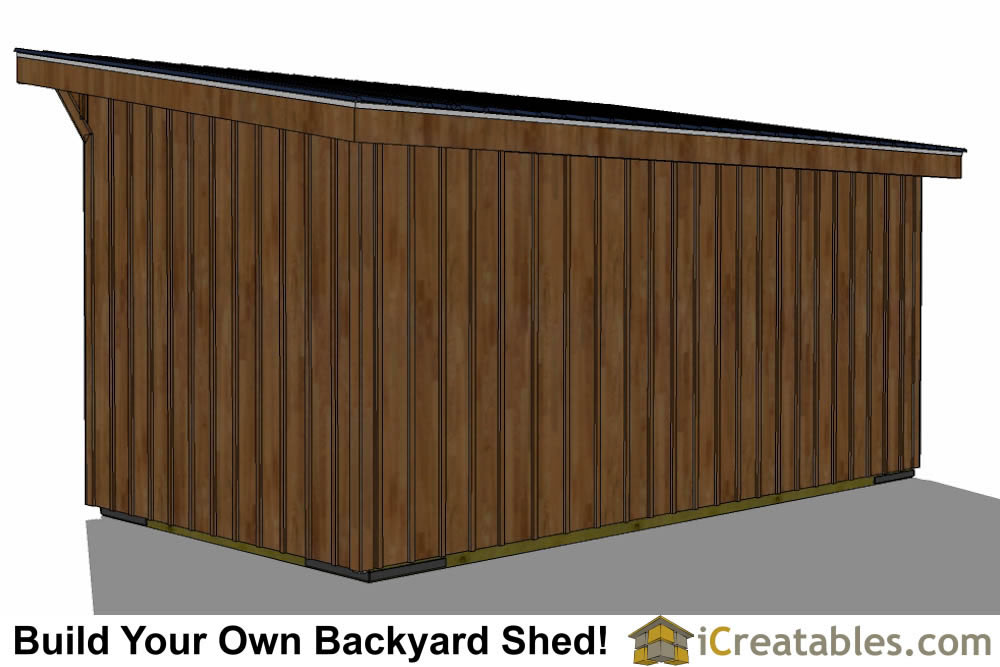

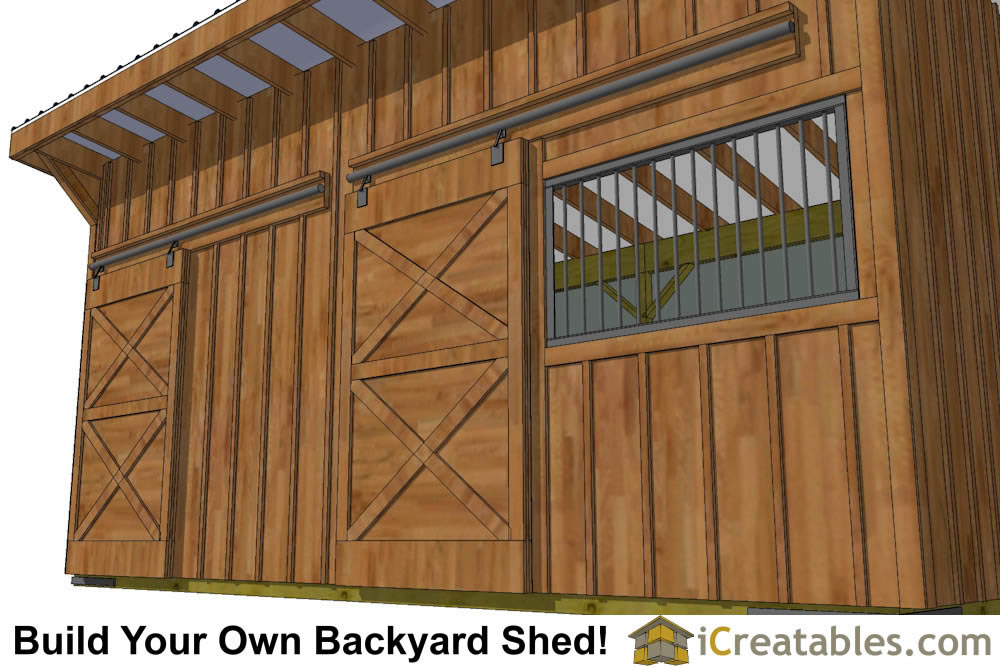

10x20 horse barn plans inside10x20 horse barn plans right rear10x20 horse barn plans front view

10x20 2 Stall Horse Barn Plans Floor Plan

10x20 2 Stall Horse Barn Plans Floor Plan

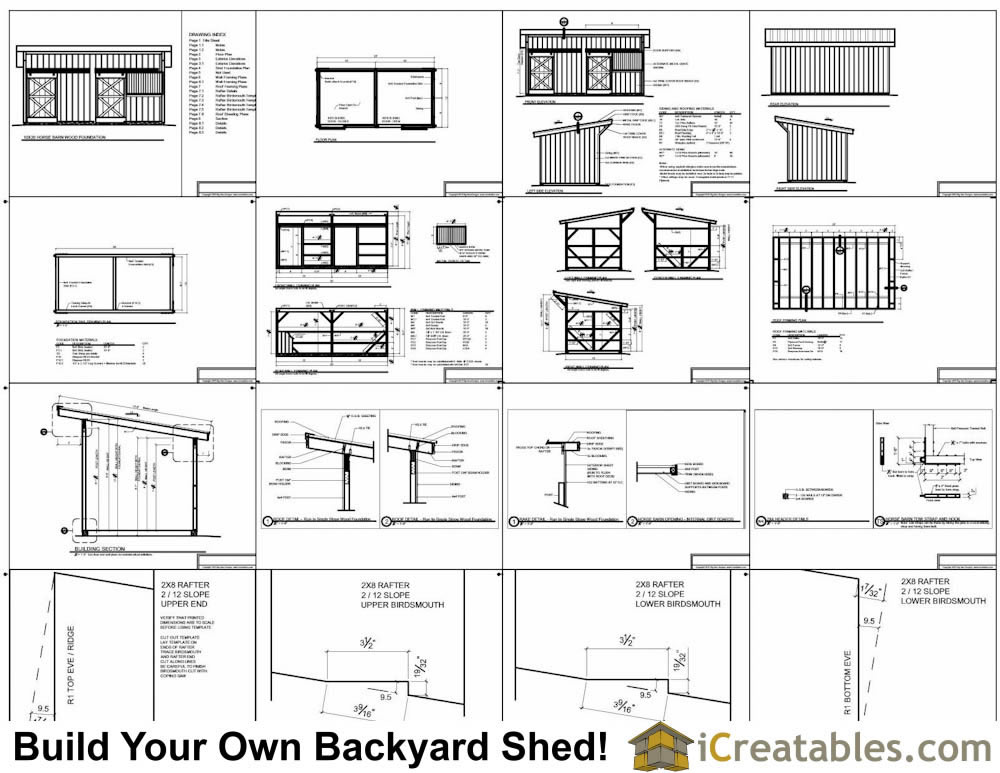

Sample of our 10x20 2 Stall Horse Barn Plans:

10x20 2 stall horse barn plans

10x20 Horse Barn Plans Include The Following:

  • Materials List:The horse barn plans come with a complete materials list that is broken down by parts of the shed.
  • Foundation: 6" x 6" Treated wood rails with steel tow hook building instructions.
  • Floor: The floor for horse run in sheds is typically left as existing dirt.
  • Walls Framing: 4x4 posts with 2x4 girt boards and kick panels on the inside.
  • Wall Height: The rear shed wall height is 8'-7", the front wall is 10'-6 1/2". The entry header height is 9'-9".
  • Siding: Rough Cut plywood siding with 1x2 battens are the primary siding but other sidings such as corrugated metal or 1x10 boards and may be used.
  • Doors: Door plans and hardware information are included to build barn doors.
  • Roof: The roof is framed using 2x8's to build the rafters. It is sheeted with 1/2" O.S.B. for strength. The plans give you a template and dimensions for the birdsmouth cut angles on the rafters.
  • Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 24" on the front and 12" on the sides and back.
  • Roofing = Corrugated metal roofing is the primary designated roof but asphalt shingles may be used if the manufacturers recommenations for low slope roofs are followed.
  • Trim = 1x4 wood is used to finish the corners.
