All Our Shed Plans Feature:
Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
The 12x16 Run In shed plans include:
Post and Beam Construction - 4x4 beams hold up the
Kickboards - Siding and kick boards help keep your run in shed strength and durability. You may use 2x6 pine boards or 1x8 oak boards or 3/4" Plywood.
Wood foundation rails - This shed is build on 6x6 treated rails to allow mobility see our other 12x16 run in sheds on our run in horse barn page.

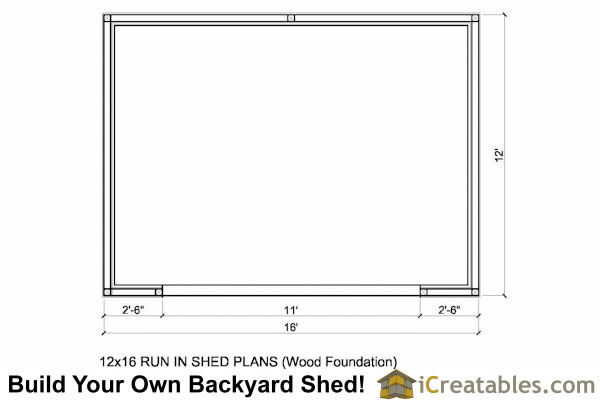

12x16 Run In Shed Plans Floor Plan

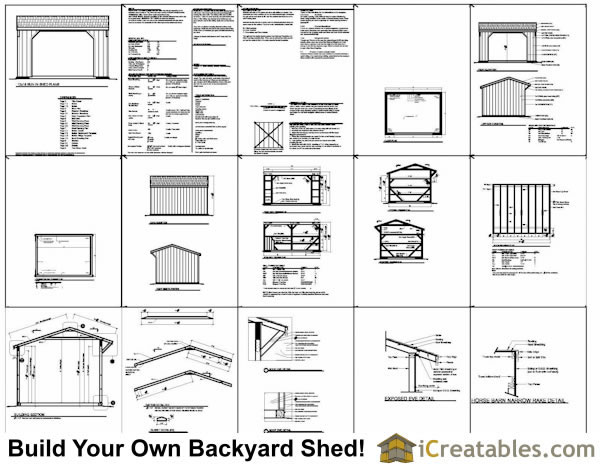

Example of the plans to the 12x16 Run In Shed:
12x16 Horse Run In Plans Include The Following:
Materials List:The 12x16 Run In horse barn plans come with a complete materials list that is broken down by parts of the shed.
Foundation: This run in shed is built on 6x6 pressure treated rails.
Floor: The floor for horse run in sheds is typically left as existing dirt.
Walls Framing: 4x4 posts with 2x4 girt boards and 1x8 oak kick panels on the inside and 1x10 pine boards and battens on the outside. Wood sheet materials or metal siding may be used.
Wall Height: The rear shed wall height is 8'-5 1/2", the front wall is 9'-5 1/2'. The entry header height is 8'-5 1/2".
Siding: 1x10 boards and 1x2 battens are the primary siding but other sidings such as corrugated metal or 4x8 rough cut plywood may be used.
Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. for strength. The plans give you a template and dimensions for the birdsmouth cut angles on the rafters.
Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 18" on the front and 6" on the back, the sides have a 2" overhang.
