Emailed Plans: $34.99
(8 1/2" x 11" Emailed PDF
Postal Mailed Plans: $40.99
(8 1/2" x 11" Postal mailed)
Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.

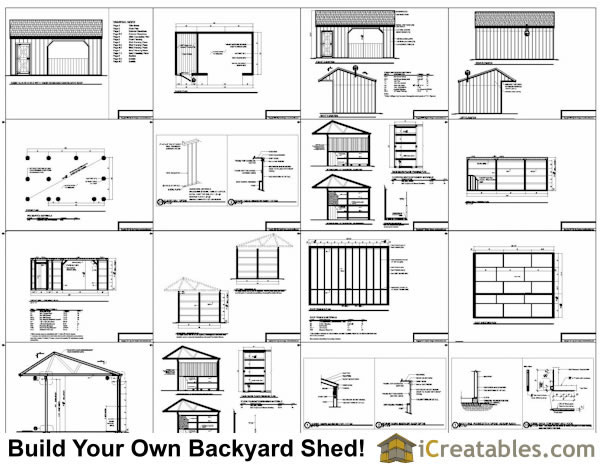

Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
Modified Post and Beam Construction - The walls are framed using 4x4 posts with beams set on top of them in structural post holders. The walls are framed using horizontal girt boards and sheet siding.
Burried Post Foundation - The posts are direct burried.
Oak Kickboards - Oak kick boards on the inside help keep your run in shed strength and durability. They can be substituted with 4x8 Plywood.
Engineered Trusses - The trusses are built by a local truss plant. Engineered trusses insure that the roof cantilever will support your local climate conditions.
Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
Foundation: Two foundation plans are included. Direct bury post or built on 12" round concrete piers and post bases.
Floor: The floor for horse run in sheds is typically left as existing dirt.
Walls Framing: 4x4 posts
Wall Height: The front and rear wall heights are 9'-3". The door opening height is 8'-6" above the ground and 8' above the 6x6 wood rail.
Doors: There are no doors on the run in shed.
Window: There are no windows on the plans but windows can be added on any wall.
Siding: 4x8 Textured plywood siding and 1x2 wood battens.
Roof: The roof is framed engineered roof trusses with a built in cantilever. It is sheeted with 7/16" O.S.B. for strength and can have asphalt shingles or metal roofing installed.
Roof Pitch: 8/12 on the front and 4/12 over the stall.
Roof Overhang: 6'-0" on the front. The sides and rear use a narrow rake detail which is about a 2" overhang. Longer overhangs can be installed by extending the roof truss tails and installing a barge rafter on the gable ends.
Roofing = Asphalt shingles or Corrugated metal roofing.
Trim = 1x4 and 2x6 wood are used to finish the corners, roof eves and facia.
