12x30 3 stall horse barn plans

12x30 3 Stall Horse Barn
sku (horse12x30-HB2C)

Emailed Plans: $49.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $55.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.

The 12x30 2 Stall Horse Barn Plans Include:

  • Post and Beam Construction - Our run in shed uses common post and beam construction.
  • 3 Stall Horse Barn Images

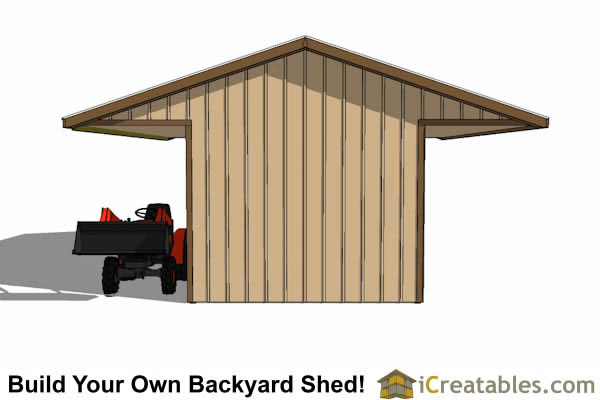

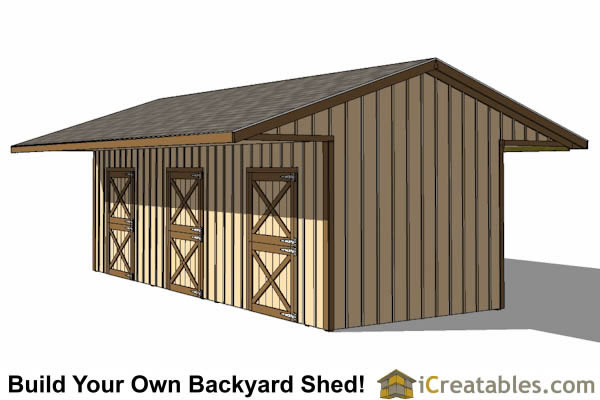

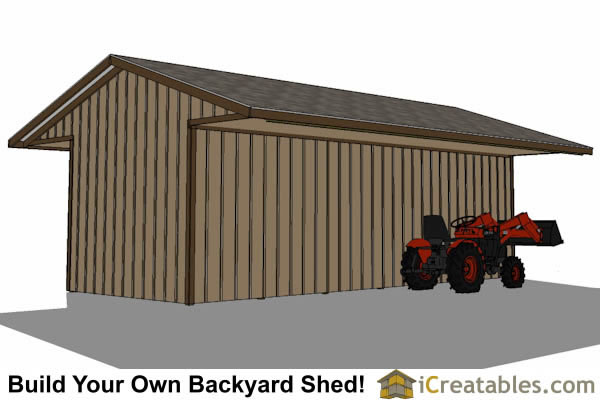

12x30 3 stall horse barn plans end12x30 3 stall horse barn plans rear12x30 3 stall horse barn plans right rear

12x30 3 stall horse barn with storage



12x30 Horse Run Shed Plans and Tack Room Floor Plan

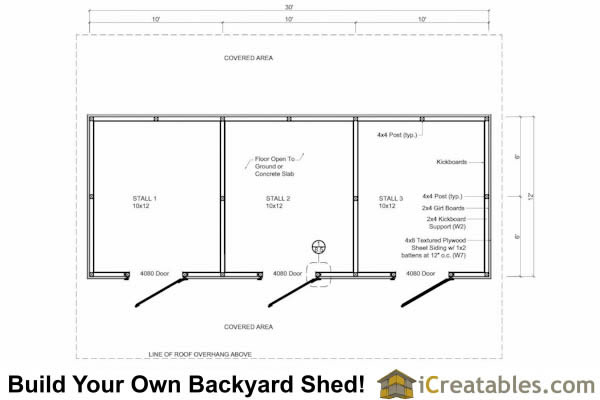

12x30 3 stall horse barn floor plans

12x30 3 Stall Horse Barn Include The Following:

  • Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
  • Foundation:Two foundation plans are included. Direct bury post or built on 12" round concrete piers and post bases.
  • Floor: The floor can be left as dirt or a concrete slab can be installed under the shed.
  • Walls Framing: 4x4 posts with 2x4 girt boards between them.
  • Wall Height: 9'-2"
  • Doors: 4x8 Doors with "Dutch" split.
  • Window: There are no windows on the plans but windows can be added on any wall.
  • Siding: 4x8 Textured plywood.
  • Roof: The roof is framed using manufactured trusses. It is sheeted with 7/16" O.S.B. for strength and can have asphalt shingles or metal roofing installed.
  • Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: The trusses have a cantilever built into them so there are 6'-2" covered areas on the front and back. 12" on the sides.
  • Roofing = Asphalt shingles or Corrugated metal roofing.
  • Trim = 1x4 trim

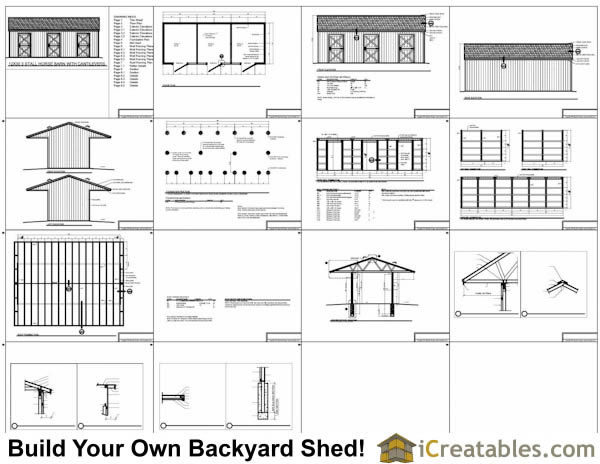

12x30 Horse Shed With Tack Room Plans Example:

12x30 3 stall horse barn plans example
