12x30 Run In Shed Plans
sku (horse12x30-RITR-WF)

Emailed Plans: $39.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $45.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.


The 12x30 Run In shed plans include:

  • Post and Beam Construction - Our run in shed uses common post and beam construction.
  • Tow Hook Plans - Plans are included for steel tow hook straps that go on each corner to help move the run in shed and keep the foundation skids rigid.
  • 6x10 Tack Room and two 12x12 Run In Bays
  • Kickboards - Siding and kick boards help keep your run in shed strength and durability. You may use 2x6 pine boards or 1x8 oak boards or 3/4" Plywood.

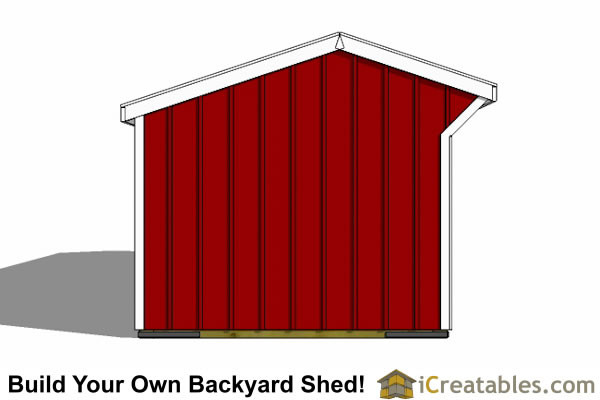

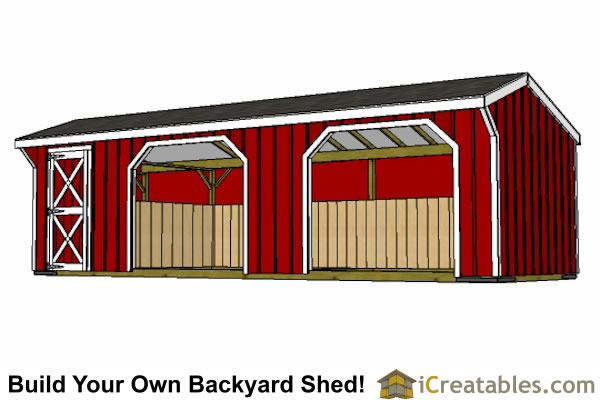

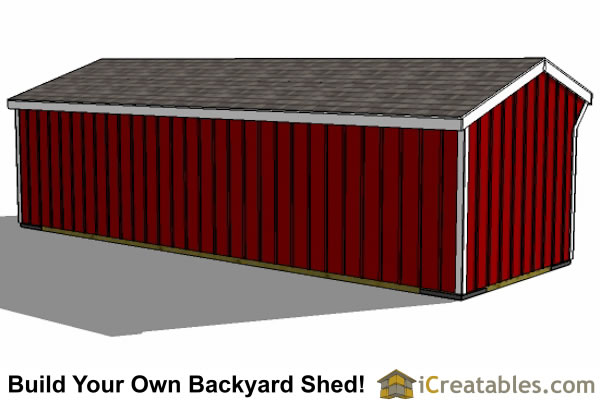

12x30 run in shed end12x30 run in shed rear12x30 run in shed inside

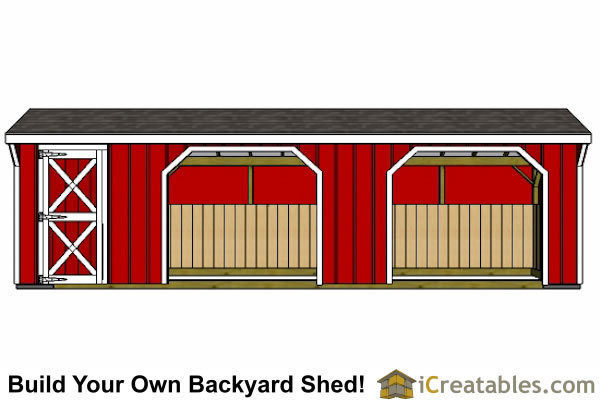

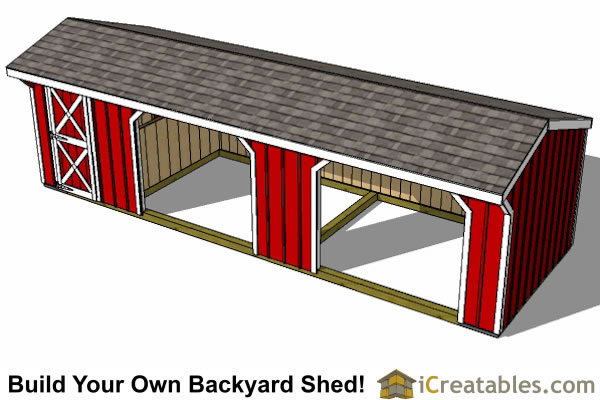

12x30 Run in shed front view straight on12x30 run in shed top view

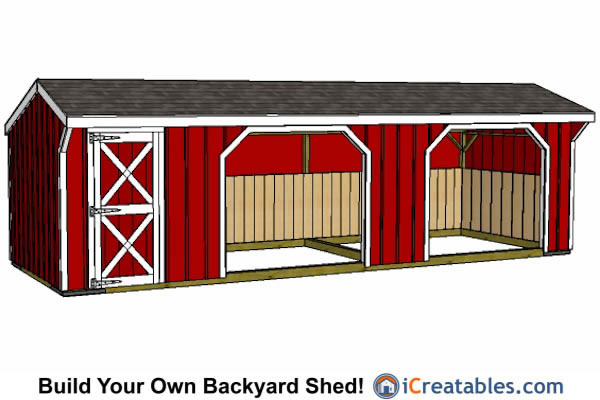

10x30 run in shed with tack room plans12x30 Horse Run Shed Plans and Tack Room Floor Plan

12x30 run in shed with tack room floor plan

12x30 Run In Horse Shed Plans Include The Following:

  • Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
  • Foundation: The horse run in shed is built on 6x6 wood skids so the shed has a open floor and can easily be placed on the ground or a prepared gravel base.
  • Floor: The floor for horse run in sheds is typically left as existing dirt. The floor of the tack room is made from 2x8 T&G boards
  • Walls Framing: 4x4 posts with 2x4 girt boards between them.
  • Wall Height: The lower shed wall height is 7'-7" above the 6x6 rail which makes the rear wall about 8'-0" above the ground. The higher wall is just over 9'-0" above the ground.
  • Doors: The run in bays are open and the tack room has a 3'x7' door. Plans are included for the door.
  • Window: There are no windows on the plans but windows can be added on any wall.
  • Siding: 1x10 boards and 1x2 battens. You may also use 4x8 textured plywood and battens.
  • Roof: The roof is framed using 2x4's to build the rafters. It is sheeted with 1/2" O.S.B. for strength and can have asphalt shingles or metal roofing installed. The plans give you a template and dimensions for the birdsmouth cut angles on the rafters.
  • Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 18" on the front and 6" on the back. 2" on the sides.
  • Roofing = Asphalt shingles or Corrugated metal roofing.
  • Trim = 1x4 and 1x6 wood are used to finish the corners, roof eves and facia.
  • Tow Hooks = The plans include drawings for the 1/4" x 2" x 24" corner braces and tow hooks to be made by local welding shop

12x30 Horse Shed With Tack Room Plans Example:

12x30 run in shed construction plans
