Postal Mailed Plans: $50.99
(8 1/2" x 11" Postal mailed)
Buy E-MAILED Version
Buy POSTAL-MAILED Version
All Our Shed Plans Feature:
Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.

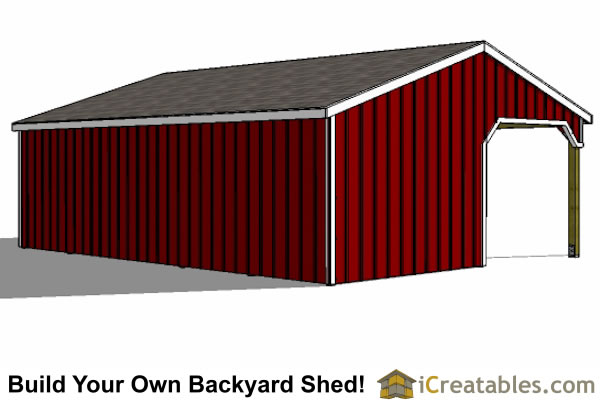

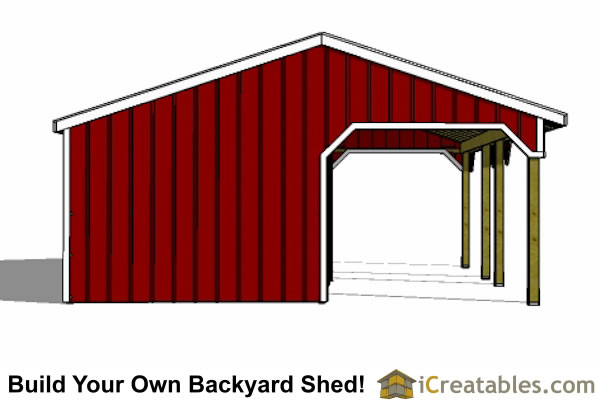

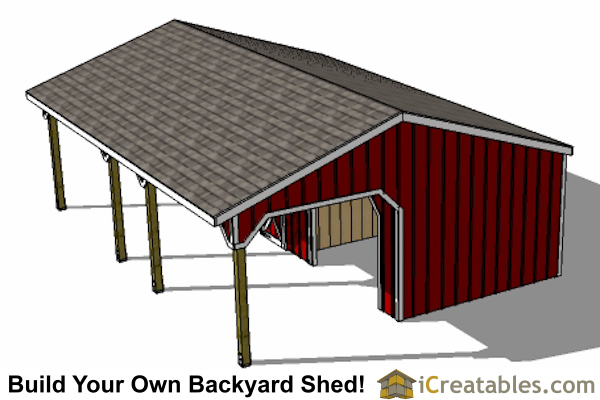

The 2 Stall Horse Barn with a Lean To and Tack Room include:
Post and Beam Construction - Our run in shed uses common post and beam construction.
Kickboards - Siding and kick boards help keep your run in shed strength and durability. You may use 2x6 pine boards or 1x8 oak boards or 3/4" Plywood.
Door Plans - Included are plans to build a 4'x8' dutch door.

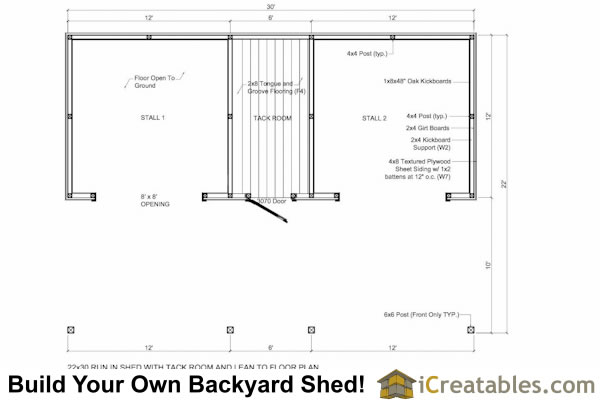

22x30 2 Stall Horse Barn with Tack Room and Lean to Breezeway Floor Plan
22x30 2 Stall Small Horse Barn with Breezway and Tack Room Plans Include The Following:
Materials List: The 2 stall run in shed with tack room come with a complete materials list.
Foundation: The run in shed has two foundation options with the downloadable plans: Direct bury posts or Concrete pier..
Floor: The floor for horse run in sheds is typically left as existing dirt or gravel or rubber mats can be installed.
Walls Framing: 4x4 posts with 2x4 oak girt boards and 1x8 oak kick panels on the inside and 4x8 textured plywood or 1x10 pine boards and battens on the outside
Wall Height: The rear shed wall height is 8'-6", the front lean to wall is just over 9'. Center wall is 12'-4.
Window: There are no windows on the plans but windows can be added on any wall.
Siding: 1/2" thick textured plywood 1x10 boards and 1x2 battens.
Roof: The roof is framed using 2x8's to build the rafters. It is sheeted with 1/2" O.S.B. for strength and can have asphalt shingles or metal roofing installed. The plans give you a template and dimensions for the birdsmouth cut angles on the rafters.
Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 6" on the front and 6" on the back. 2" on the sides.
Roofing = Asphalt shingles or Corrugated metal roofing.
Trim = 1x4 wood trim is used to finish the corners and door openings.
Engineering: Design loads are "typical". It is recommended that you have local structural engineer review the plans and make any necessary modifications for local soil, wind, snow and seismic conditions.

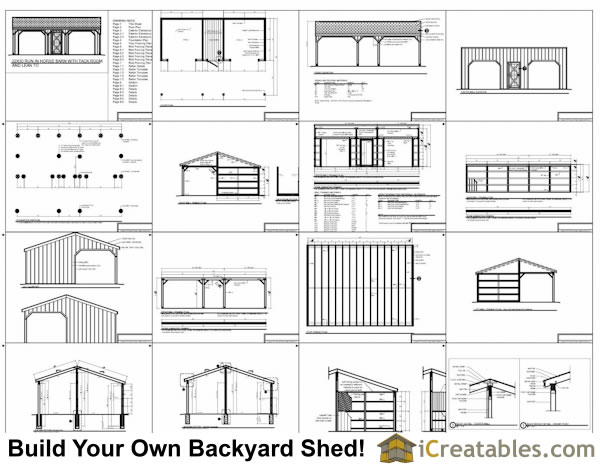

Example Of The Two Stall Horse Barn Lean To Shed Plans
FREE Shed Materials List (Click To Download and Print)
