This article teaches you how to build a floor for a house on a concrete foundation. This framing system can also be used for framing storage shed floors.This floor framing system is typical over basements and crawl spaces.
Joist spans and spacing are determined by engineering that is published by the manufacturer.
This article will teach you how to build a floor for a house.
The first step to building a floor for a house is to attach the sill plates to the foundation of the house. The foundation will have bolts set into the concrete along the perimeter. You will use these bolts to attach the sill plate to the foundation. The sill plate must be square, even if the foundation was poured out of square. This will make your floor system square and hopefully keep the rest of the house framing closer to square as you go up to the roof.
Squaring a floor is done by making a "345 triangle" on the top of the foundation. The numbers stand for the lenght in feet, 3' 4' 5'. The larger the triangle the more square your floor will be. Simply double the 345 by making the triangle legs 6'-8'-10' or larger. These are the steps to square up the sill plates on a house without brick, if your house has brick you will need to add the brick thickness to the 3 1/2" measurement in from the outside of the foundation:
After these two lines are on the foundation you will be able to easily pull measurements across the foundation to the other foundation walls and mark parallel lines for the other sill plate locations. Try to get them 3 1/2" in from the outside of the foundation. These measurements are rarely the exact same as the plans because the concrete foundations are not always square.

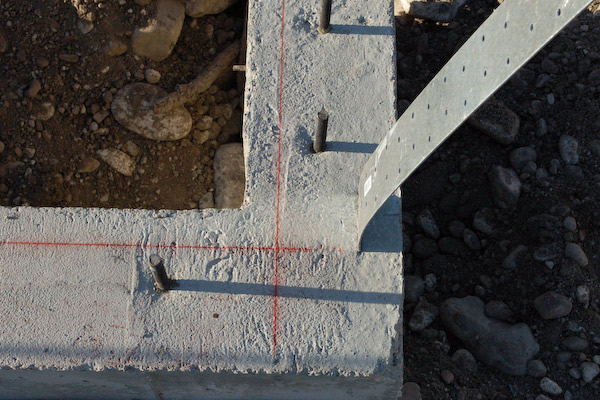

This image shows the chalk lines measured in 3 1/2" for the plate and 2" for brick.
These are the steps to mark and drill the sill plates:

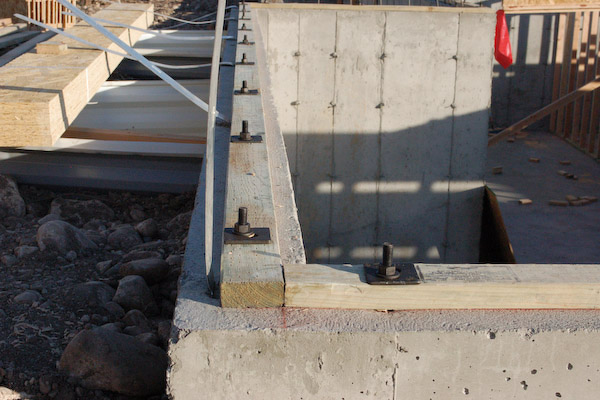

These sill plates are held back from the edge of the foundation so bricks can be installed.
After you have the sill plate installed you will be able to measure the exact height of the basement bearing walls or the beams used for bearing in crawl spaces. Either way the process to find the height of the bearing plate on the interior lower walls is about the same. Measuring from the basement floor to the top of the sill plates better insures a flat floor because basement concrete slabs are never perfectly level but your wood floor can be by following these steps:

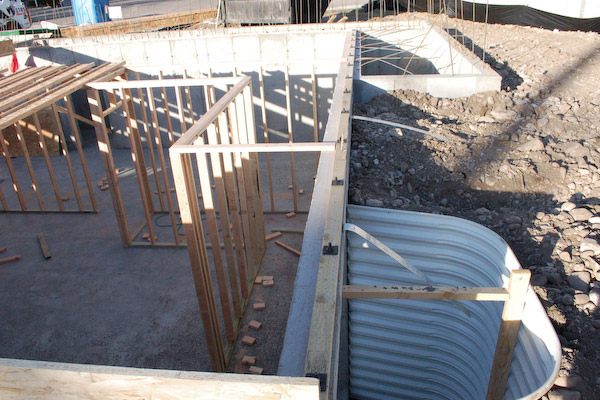

This is a image of a basement stairwell wall and main bearing wall. Notice the wood blocks next to each wall stud. Notice how the plate is 1/2" in from the outside of the foundation at the corner but farther away it is flush with the outside of the foundation. This foundation is out of square.
Floor joists are typically spaced 16" o.c. or 12" o.c. This article will assume 16" o.c. Start at one corner of the foundation and layout the joists 16" o.c. If you hook your tape measure on the sill plate that runs parallel to the joist layout then you will find 16" on the tape measure and subtract half the thickness of the joist to mark the edge of the floor joist. So for a 2" wide flange on a joist you will find 16" on the tape measure and go back to 15" to make the mark. Continue this on all the marks along the sill plate.
Mark the opposite sill plate from the same end so all the floor joists are square with the foundation. Use a ladder to mark the top of the bearing wall with the same joist layout from the same side of the foundation as the two exterior walls.
The rim joist is attached at the ends of the joists to keep the joists stable in the upright position and to carry the weight of the walls and roof above. The rim joist will typically sit on the edge of the sill plate.

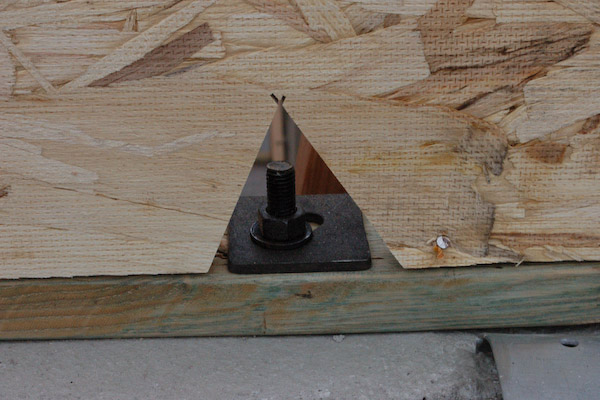

It is common to notch the rim joist over the anchor bolts.
Now you are ready to cut and install the floor joists.
Floor joists attached to rim joist.
Floor joists laid out between the rim joists.
If there is a stairway opening you will frame the walls for it just like you did the main bearing wall. The floor joists will run to the inside of the stairway and be headed off with a rim joist on the inside side of the stairway.

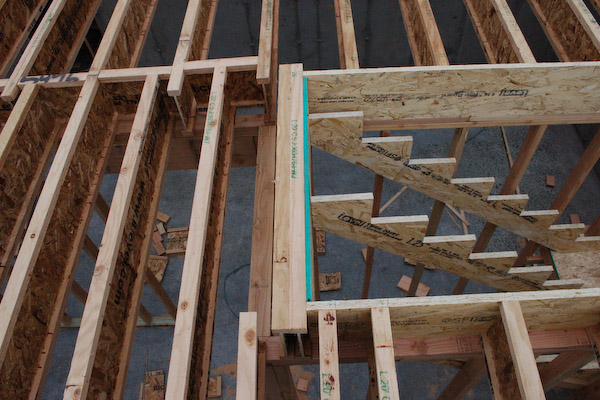

Stairway opening in floor joists. Notice how the rim joist sits on the inside of the stairwell wall so the floor joists can bear on the wall. The two joists at the top of the stairs provide additional support to hold the stair stringers.

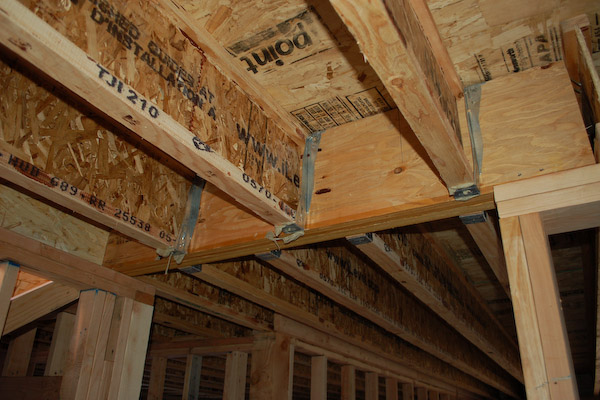

Sometimes you may want to have a beam holding the floor but you don't want the beam to be below the floor joists. This problem can be solved by installing a beam in the floor joist system and hanging the floor joists on the beam. Make sure to use construction adhesive in the seat of the hanger to prevent floor squeaks.
The beam is typically sized to be the same height as the floor joists.

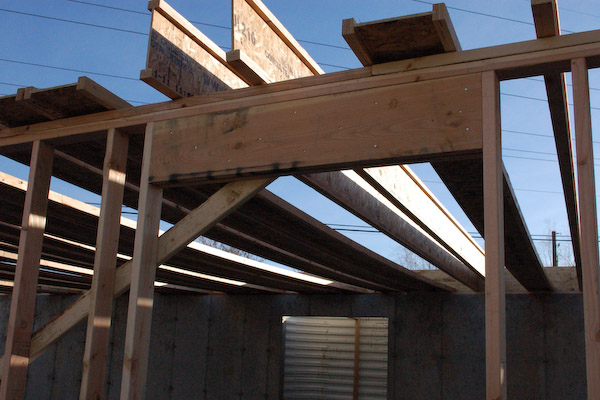

Other times you can simply put the beam under the floor joist. This beam will get trimmers under each end to hold it up before the framing is finished.
Cantilevers are used to extend the floor beyond the foundation. This is popular with fireplaces, breakfast nooks and bay windows. Follow the engineering specifications when determining how far the joists need to extend under the floor to allow your desired cantiliever.

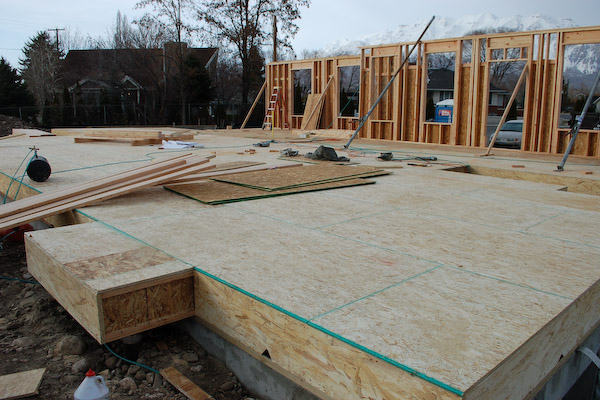

The final step in building a floor for a house is to sheet it with OSB. The OSB or plywood must be staggered like stacking bricks to give it strength. OSB floor sheeting is typically 3/4" thick and comes with a tounge and goove to give the spans between the floor joists strength.
Pick a wall to start installing the floor sheeting from, typically you will start at the same end that you laid out the floor joists from so you can start with a full or half sheet.

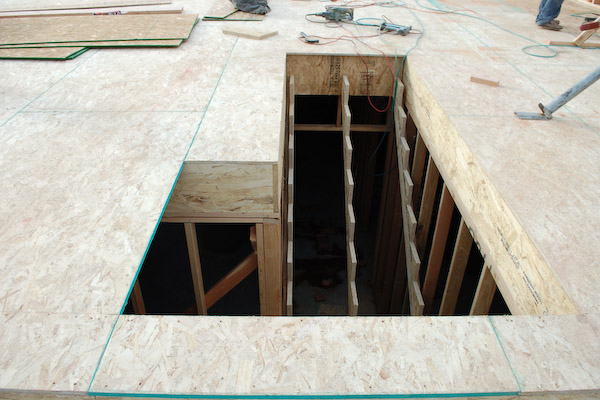

This is the floor sheeting around the stairwell. Notice how the rim board and the sheeting and the wall below line up perfectly. Also notice how we left the sheeting over hanging the first step so there will be a stair nosing coming off the floor. Wait until the stairs are in to cut out the sheeting over the bottom part of the stairs to make sure there is the code required 6'-8" of headroom.
Now that you have built the floor for the house you are ready to frame the exterior walls!related articles
