2400x3000 metric-shed-plans-2.4x3 meter shed

3600x4200 Metric Shed Plans
sku (metric3600x4200mm)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: Please email us for pricing for your country

Buy E-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook in English language included with every shed plans purchase. The eBook is written using imperial dimensions but most items cover general constructions techniques where size does not matter.
  • Cost Effective - Our metric sheds are designed around the 1200x2440 O.S.B. sheeting size.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.

The 3600x4200 Backyard storage shed plans include:

  • 2066mm Wall Height - This is the most cost effective wall height because it saves on material and allows the home built shed door to be on any wall.
  • Home Built Doors - 1144mm wide x 1850mm tall home built door.
  • Multiple Door Options - Drawings explaining how to build the door on the end or sides of the shed.
  • 3 Foundations - Skid or concrete slab or Treated joists on crushed gravel foundation plans are included.

2400x3000-B-metric-shed-plans-2.4x3 meter shed top view2400x3000-B-metric-shed-plans-2.4x3 meter shed rear view2400x3000-B-metric-shed-plans-2.4x3 meter shed side door2400x3000-B-metric-shed-plans-2.4x3 meter shed end door



Optional Shed Side Door Plans Included

3600x4022 mm garden shed plans

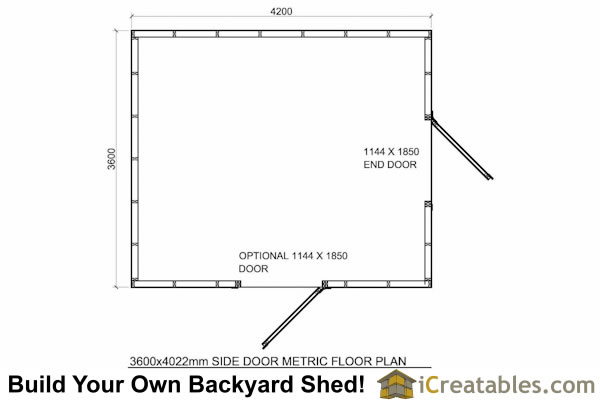

3.6x4.2 Meter Backyard Storage Shed Floor Plan

2400x3000-B-metric-shed-plans-2.4x3 meter shed floor plans

3.6x4.2 Meter Gable Shed Plans Include The Following:

  • Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
  • 3 Foundations: 89X140mm Pressure Treated Wood skid, Pressure treated floor framing on crushed gravel. Concrete Slab.
  • Floor: 38x140 floor joists with 18mm floor sheathing.
  • Walls Framing: 38x89 framing at 600mm on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is 2066mm. This wall height will accomodate the door that is outlined in the shed plans.
  • Doors: Three door Options
    • Our shed door plans show you how to build a shed door using sandwich construction for strength and durability. This door construction builds a shed door that will outlive the shed. The shed door is built using a 38x89 inner frame faced on the inside with 12mm O.S.B. and on the outside there is a layer of sheet exterior siding to match the rest of the shed. We use 3 hinges on the doors and the screws go into the inner 2x4 frame of the door to give extra strength.
  • Siding: Sheet exterior siding or similar 1200x2400x12mm wood or cement panel siding is specified but you can use any siding you like.
  • Roof: The roof is framed using 28x140mm boards to build the rafters. It is sheeted with 12mm O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 20 degree
  • Roof Overhang: 174mm on the sides and 38mm on the front and back.
  • Roofing: 25 year asphalt shingles
  • Trim: 12x38mm wood, masonite or cement trim materials are used to finish the corners
  • Floor Load: 22kg per square foot for framed floors. This is the same floor load rating used in building homes.
  • Roof Snow Load: 18kg per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load.

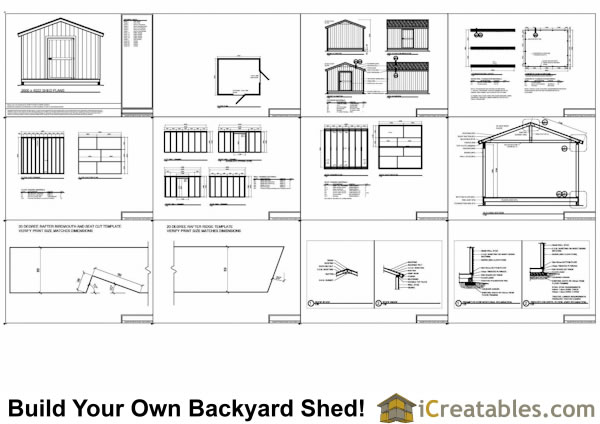

Sample of our 3600x4200mm storage shed plans:

10x10 gable shed plans example
