4800x7200 metric shed office plans

4800x7200 Modern Shed
sku (shed4800x7200-S2)

Emailed Plans: $50.99
(8 1/2" x 11" emailed PDF)

Postal Mailed Plans: $56.99
(8 1/2" x 11" postal mailed)

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 4800x7200 Studio Shed plans include:

  • Parapet wall details- The shed uses a 1 in 12 pitch roof and a parapet wall so the front and side walls appear as a flat roof.
  • Wood Rail Foundation - Wood Skid
  • Wood Siding -Siding is shown as wood siding but other sidings can be substituted.

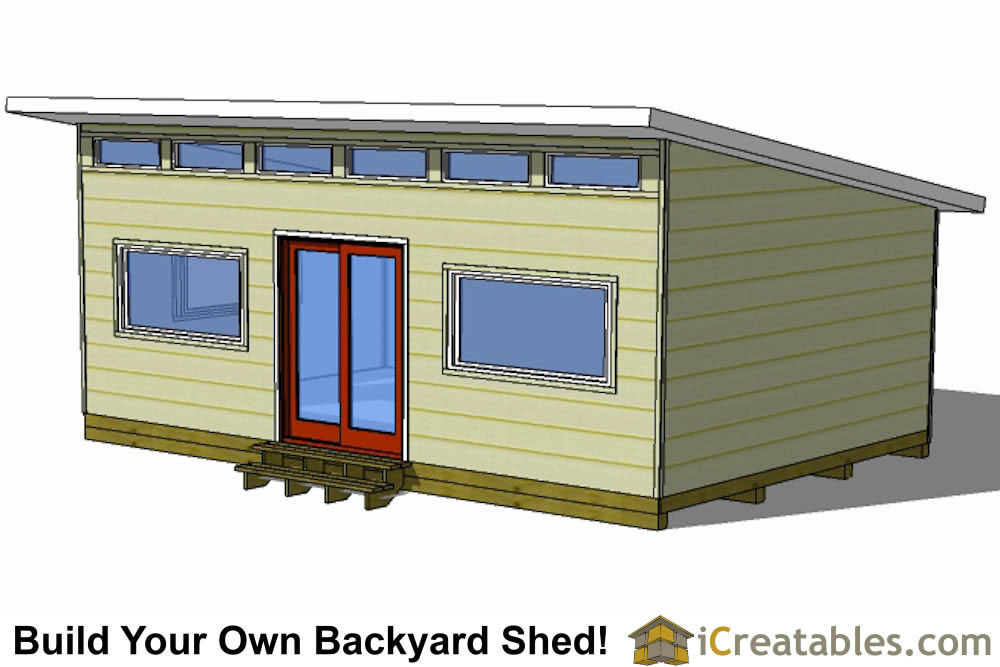

4800x7200 metric  modern shed plan with flat roof front elevation4800x7200 metric  modern shed plan front

4800x7200 metric modern shed plan with flat roof end elevation4800x7200 metric modern shed plan with flat roof rear view

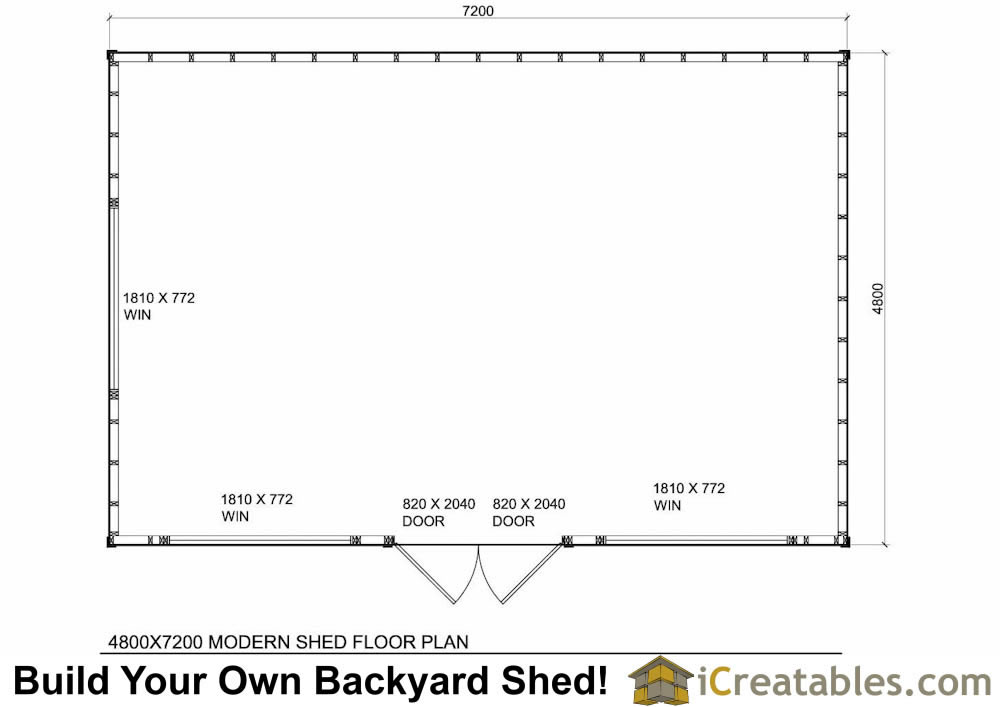

4800x7200 Office Shed Plans Floor Plan

4800x7200 metric office shed plans floor plan

4800x7200 Modern Shed Plans Specifications Overview

  • Floor: 35x140mm floor joists with 18mm floor sheathing.
  • Walls: Framing at 400mm on center, 18mm O.S.B. sheeting that allows most sidings to be applied. The lower shed wall height is 2300mm. The front wall is 3130mm.
  • Door: The specified door is a 1640x2040mm full glass residential home pre-hung door.
  • Windows: The upper windows are 1810mm x 772mm fixed and the lower windows are openable 1000x300mm
  • Roof: This is a low slope roof design. The roof is framed using 190mm rafters at 600mm on center. It is sheeted with 10mm O.S.B.
  • Roof Pitch: 10 deg roof pitch.
  • Roofing: Mineral surfaced roll or rubber membrane roof.
  • Siding: Tongue and groove siding is specified on the plans. Most sidings that can be attached to O.S.B. sheeting like Vinyl siding, cement board sidings, lap sidings, metal panel or metal corrugated and stucco, can be used.

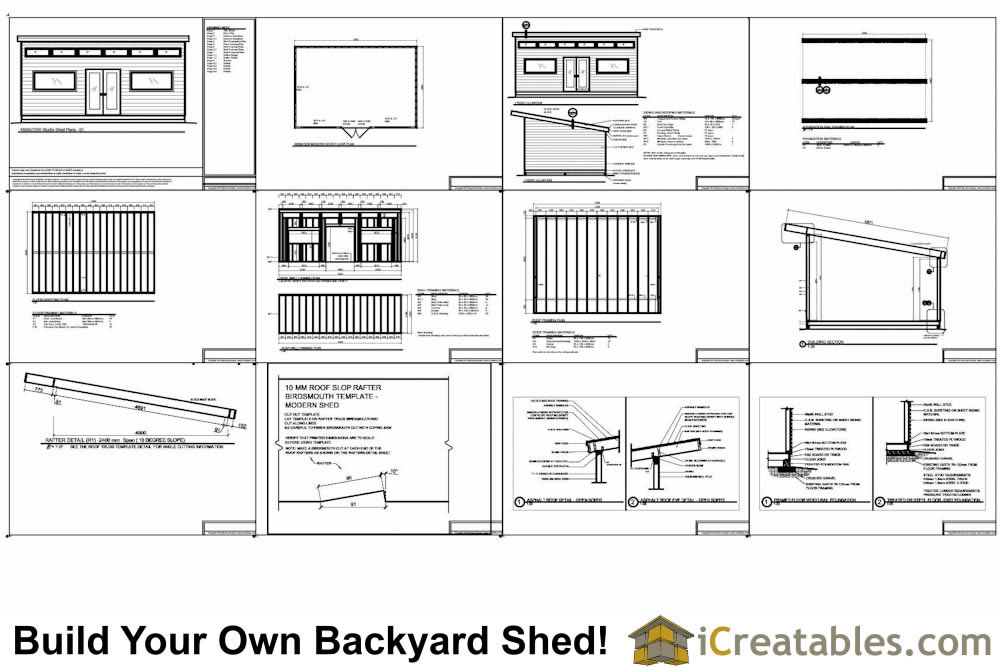

Sample of our 4800x7200 modern shed plans:

4800x7200 metric  modern shed plans
