10x16 shed plans with garage door

10x16 Garage Door Shed Plan
sku (shed10x16-GD)

Emailed Plans: $19.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $25.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

FREE - How To Build A Shed eBook included with every shed plans purchase.

Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.

Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).

Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.

Materials List - Easily get bids and use the list numbering system to know what part goes where.

The 10x16 garage shed plans include:

Garage Door - The garage door opening allows you to store things like 4 wheelers or a riding lawnmower.

8'-1" wall height - The 8'-1" wall height lets you use 92-5/8" framing studs just like a home and allows room for the garage door. Our shed garage plans provide you with the details to install an overhead door.

Flooring Options - This shed can be built with either 3/4" Subfloor or 2x6 boards or poured concrete.

2 Foundations - Skid and concrete slab.

10x16 shed plans with garage door right side10x16 shed plans with garage door elevation10x16 shed plans with garage door rear view

10x16 shed plans with garage roll up door10x16 Shed Garage Plans

10x16 shed with garage door floor plan

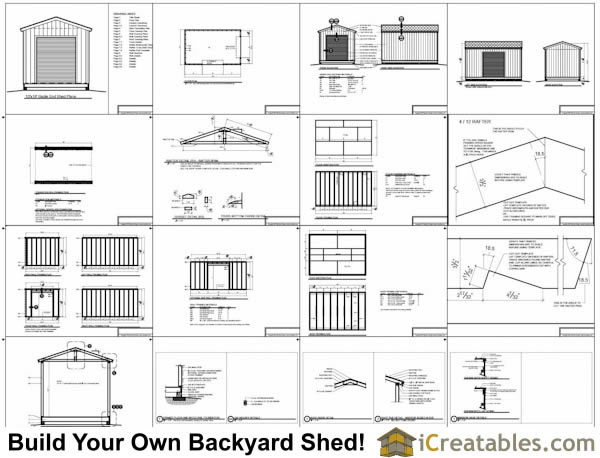

10x16 Shed With Garage Door Plans Example

10x16 shed with garage door plans

10x16 Shed Garage Plans Specifications Overview

Options: The framed shed floor can be constructed using O.S.B. sheeting or 2x6 boards.

Foundation: There are 3 different foundations included in the plans; 6x6 Wood skid or Concrete slab. or Treated Wood or steel framing set directly on a gravel bed.

Floor: There are 3 floor types included. 2x6 floor joists at 16" on center with 3/4" floor sheathing or 2x6 floor joists at 16" on center with 2x6 Treated lumber or Concrete slab.

Walls: 2x4 framing at 16" on center with a double top plate and O.S.B. sheeting, just like a home is framed.

Door: The shed is designed to use a 6' wide by 7' tall overhead roll up door. An overhead multi panel door can also be used.

Roof: The roof is framed using 2x4's to build rafter trusses.

Roofing: The shed roofing is 25 year asphalt shingles.

Siding: T1-11 sheet siding is specified.

Trim: 1x6 wood, masonite or cement trim materials are used to finish the roof eves and facia. Corner, door and window trims vary depending on siding type used.

Shed Heights to Meet City Buiilding Code Requirements Click To See The Heights Of Our Shed Plans
