Emailed Plans: $29.99
(8 1/2" x 11" Emailed PDF
Postal Mailed Plans: $35.99
(8 1/2" x 11" Postal mailed)
FREE - How To Build A Shed eBook included with every shed plans purchase.
Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.

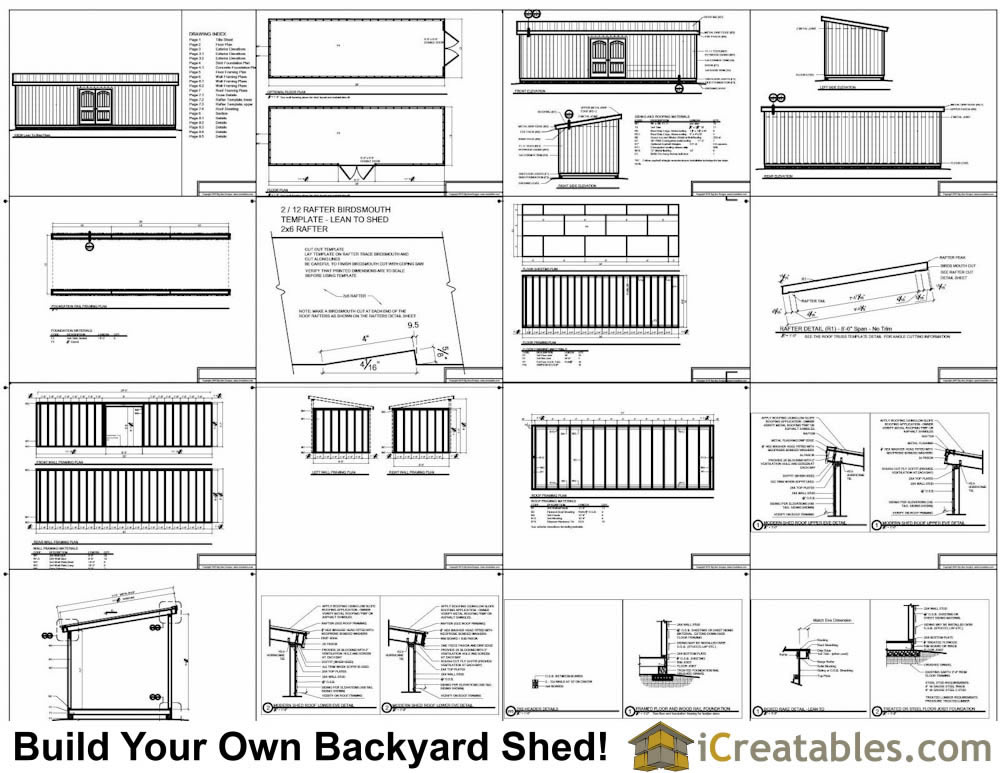

Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
7'-7" wall height - The lower wall height is 7'-7" which allows a pre-hung factory built door to go on any wall and reduces the amount of siding and labor needed to build the shed.
Factory or Home Built Doors - Using a pre hung door makes the door building and hanging job much easier. The shed plans also include door plans if you prefer to build your own doors.

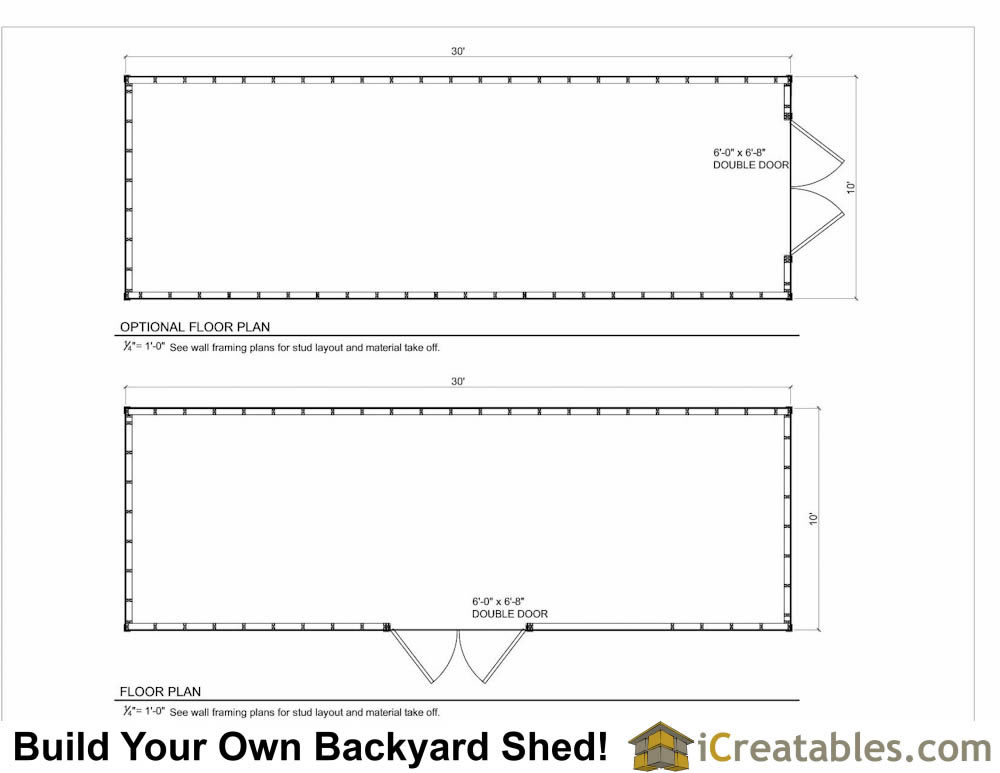

Multiple Door Options - Drawings explaining how to build the door on the end or sides of the shed.
5 Foundations - Skid, concrete slab, poured concrete pier, concrete block pier, precast pier.
Alternalte Options: The 10x20 lean to shed plans can be built with either factory built doors or you can build the doors using the door plans included with the shed plans.
Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
Foundations: There are 2 different foundations are included in the plans; Wood skid, Concrete slab.
Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
Wall Height: The lower shed wall height is 7'-7", the higher wall is just over 9'-6".
Doors: The doors are a pair of 3068 pre-hung, factory made doors for ease of installation. A single door may be installed if desired. The shed plans include plans detailing how to build home built doors that fit in the 6068 door opening.
Window: There are no windows on the plans but windows can be added on any wall.
Siding: Textured Plywood siding is what is shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding or vinyl siding.
Roof: The roof is framed using 2x6's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you a template and dimensions for the birds mouth cut angles.
Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 6" on the front and back. 1" on the sides.
Roofing = Asphalt Shingle Roofs installed with a low slope application or PBR Corrugated metal roofing shape designed for low slope roofs.
Trim = 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
Floor Load: 50 pounds per square foot for framed floors.
Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
