12x16 Cape Cod Style Garden Shed Plans

12x20 Hip Roof Shed Plans
sku (shed12x20-H)

Emailed Plans: $44.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $50.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 12x20 Hip Roof Style Shed Plans Include:

  • 7'-7" wall height - This wall height allows you to either purchase pre-hung factory built doors or build home built doors.
  • Home Built Doors Plans - Easy to understand door building plans are included.
  • 6/12 Roof Pitch - NOTE: Building a hip roof may be difficult for builders who have not built one before because of the angles involved. Although the plans do show rafter lengths there are not templates because of the compound cuts that need to be made. The roof framing plan shown below is included with the shed plans.
  • Door Options - Comes with plans for the double door on the end or between the shed windows.
  • 3 Foundations - Skid, concrete slab, Gravel with treated floor joists.

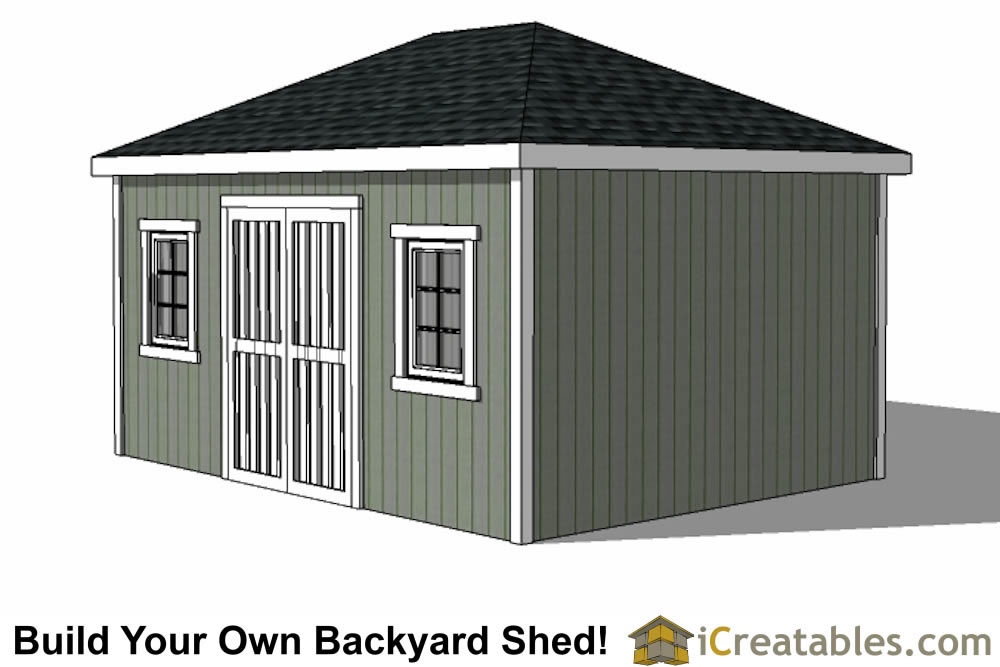

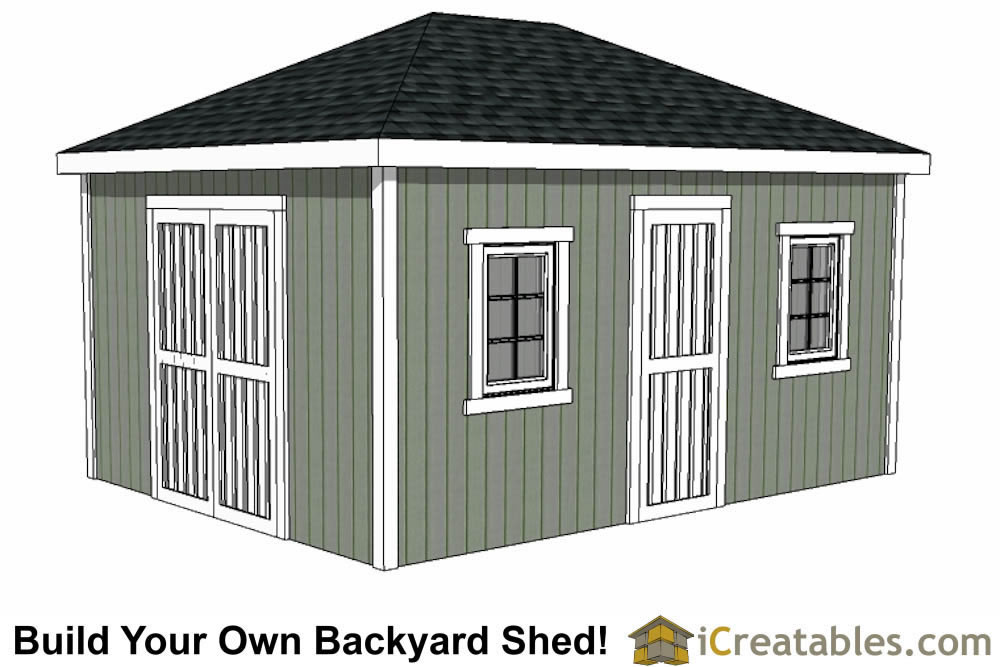

12x16 cape cod style shed left elevations12x16 cape cod style shed end door elevations12x16 cape cod style shed right elevation 12x16 hip roof shed with double doors12x16 hip roof shed with double door on end

Floor Plans

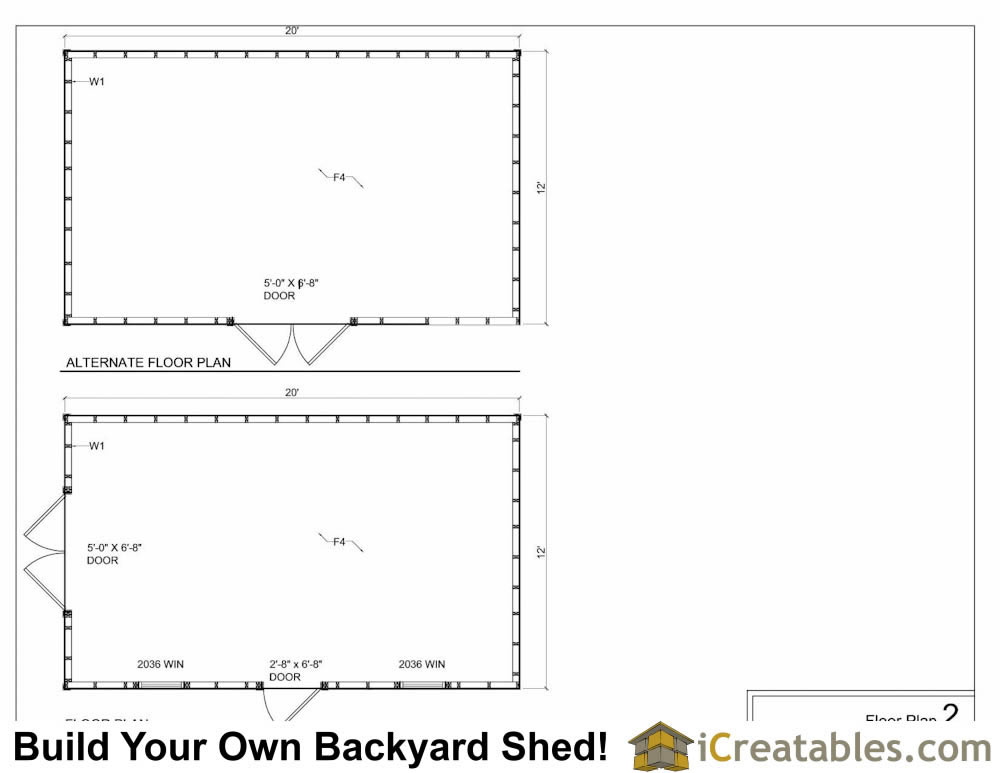

12x16 Cape Cod Garden Shed Floor Plans

Hip Roof Shed Framing Plan

12x20 hip roof shed design

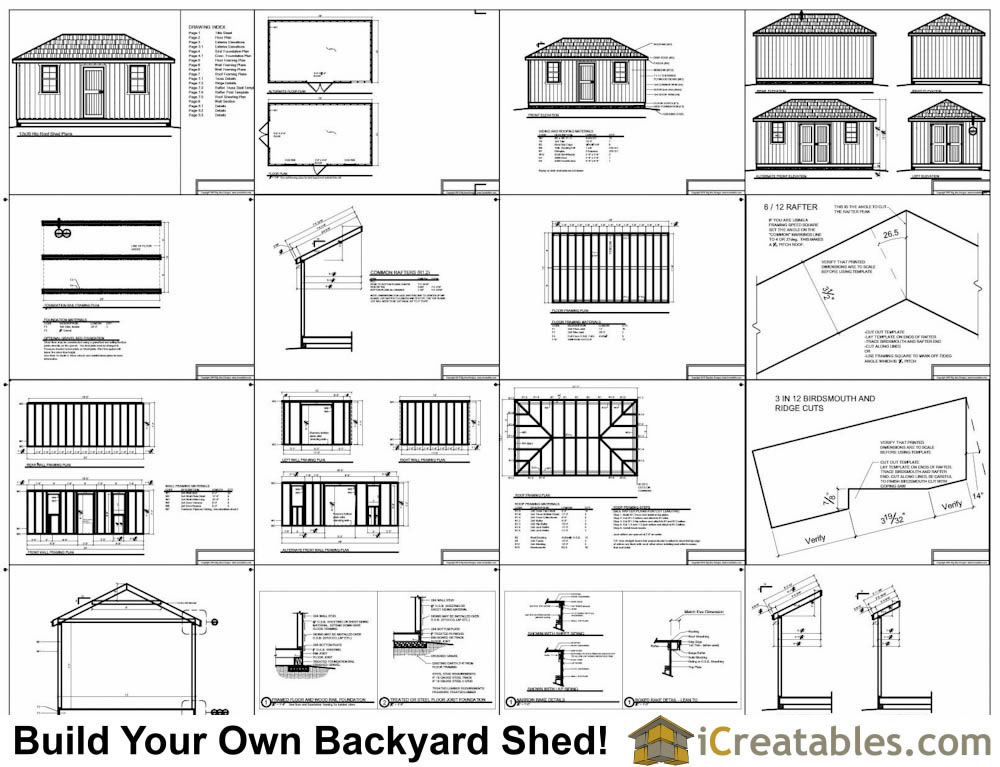

12x20 Shed Plans Example

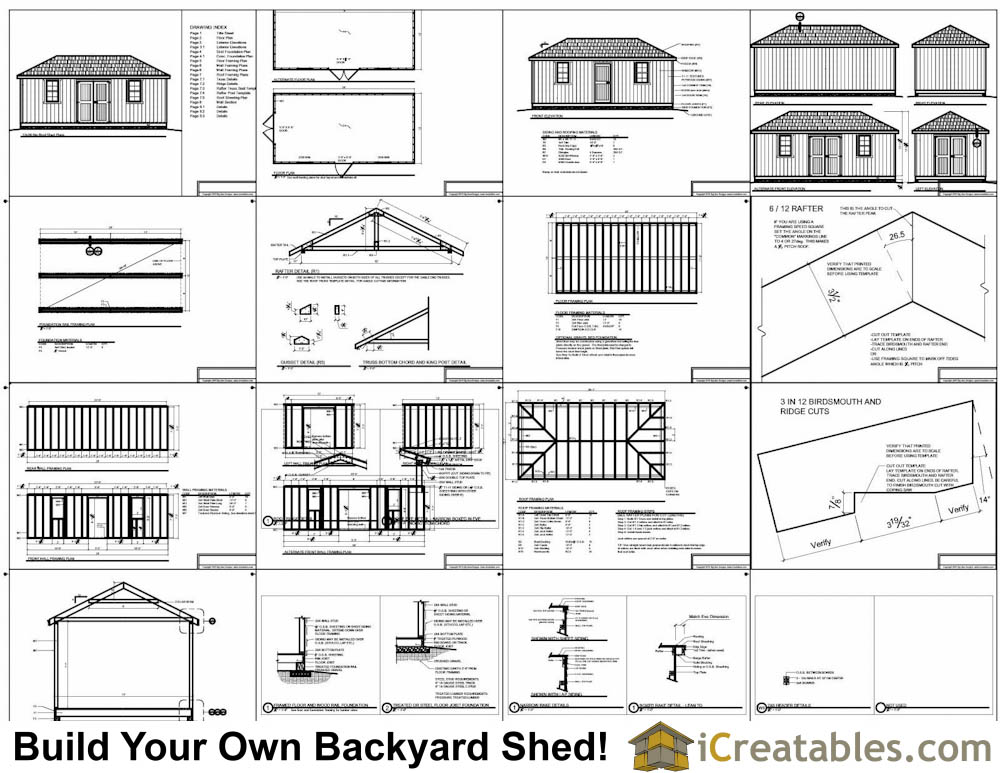

12x20 Hip Roof Shed Plans Example



Plans Specifications Overview

  • Materials List: Use the included materials list to get pricing and to simplify the ordering of materials.
  • 5 Foundations: There are 5 different foundations are included in the plans; 4x6 Wood skid, Concrete slab, Concrete Block Pier, Poured Concrete Pier and Precast pier.
  • Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing or 2x6 Treated lumber.
  • Walls: 2x4 framing at 16" on center with a double top plate and O.S.B. sheeting, just like a home is framed.
  • Door: The end double utility door is 6' wide and 6'-8" tall. The front door is 3' x 6'-8" tall. The plans come with plans for home made doors or you can purchase pre-hung doors.
  • Window: The 2030 windows are a common vinyl framed single hung window.
  • Roof: The roof is framed using 2x4's to build rafter trusses. The pitch is 10/12.
  • Roofing: The shed roofing is 25 year asphalt shingles.
  • Siding: Rough plywood siding with 1x2 battens to give the shed an authentic board and batten look. Other sidings may be used.
  • Trim: 1x6 wood, masonite or cement trim materials are used to finish the roof eves and facia. Corner, door and window trims vary depending on siding type used.

FREE Shed Materials List (Click To Download and Print)

Free storage shed plans materials list
