4x4 generator with gable roof

4x4-GNG Generator Plans
sku (shed4x4-GNG)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $20.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 4x4 Generator Enclosure shed plans include:

  • Dimensions - 4'x4' on the exterior. The interior dimensions are 3'-5" x 3'-5". The lower ceiling side is 3'-10 1/2". The peak of the roof is higher.
  • Door - The door is built using our sturdy construction design and fits on any of the walls of the shed.
  • Ventilation - The open soffits and gaps between the floor boards provide ventilaton for the generator enclosure. You may also add standard 4" round vents.
  • Side Door Option - Plans are included to install the door on either the gable or eve walls.

4x4 generator shed enclosure front4x4 generator shed enclosure rear4x4 generator shed enclosure top

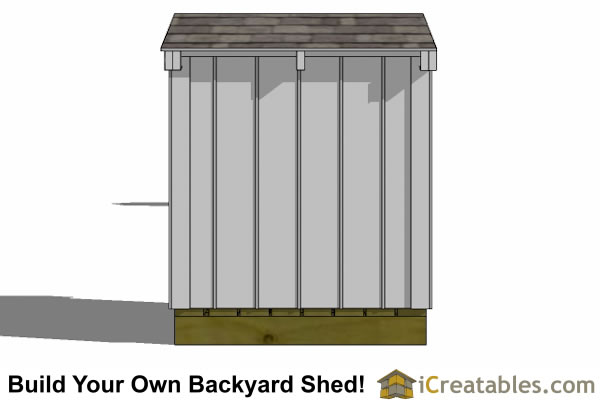

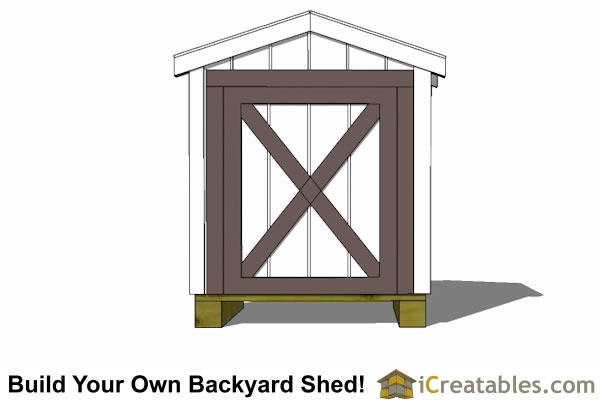

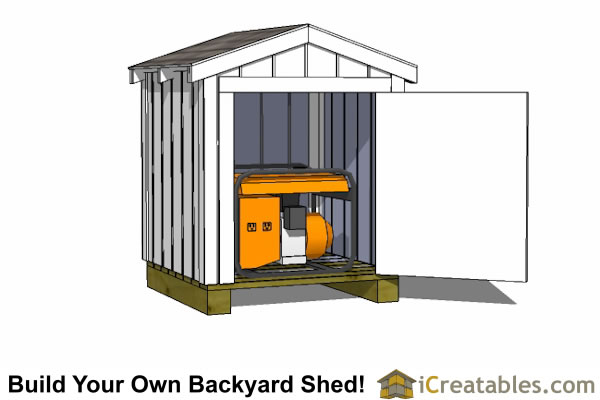

4x4 generator shed enclosure front door4x4 generator shed enclosure door open4x4 generator shed enclosure left side

4x4 Generator Enclosure Shed

4x4 generator shed floor plan

4x4 Generator Enclosure Shed Plans Include The Following:

  • Foundation: Wood skid, or the skids can be left off and it can be built on a concrete slab.
  • Floor = 2x6 floor boards with 1/2" gap between them for ventilation.
  • Walls = 2x4 framing at 16" on center
  • Door = Uses our sandwich construction door for strength.
  • Roof: The roof is framed using 2x4's to build rafters
  • Roof Overhang:4" on the eves and 1" gable ends.
  • Roofing = 25 year asphalt shingles or metal roofing.
  • Siding = T1-11 siding or similar.
  • Trim = 1x4 wood, masonite or cement trim materials.
  • Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.

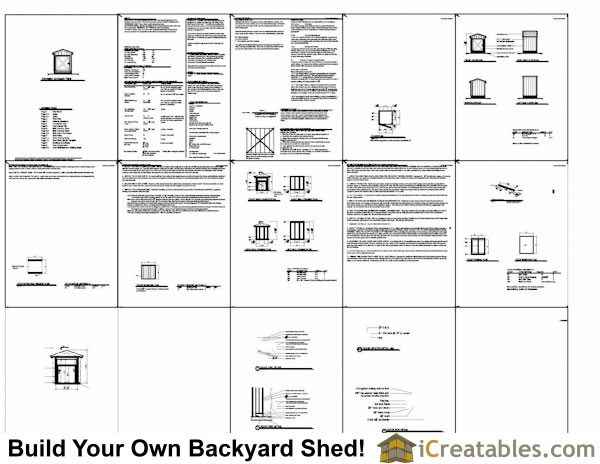

Example Of The 4x4 Genrator Shed Plans

4x4 generator gable roof plans
