5'-2" x 3'-8" Generator
sku (shed52x38-GNG)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $20.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 5'-2" x 3'-8" Generator Enclosure shed plans include:

  • Dimensions -The interior dimensions are 4'-7" x 3'-3" and the ceiling is 3'-4" tall. The shed is designed to fit generators 40" long, 28" wide and 28" high. Physical dimensions of your portable generator must NOT exceed 40" long x 28" wide x 28" high.
  • Removable Top - The top Is designed to be either built as permanent or removable to allow easier access to the shed.
  • Venting - The rafters attachment to the wall top plates provide a 2" upper vent to allow air to flow up and out of the shed. Venting is installed per your requirements. The vents shown on the images below are 3" round vents available where the construction materials are purchased.

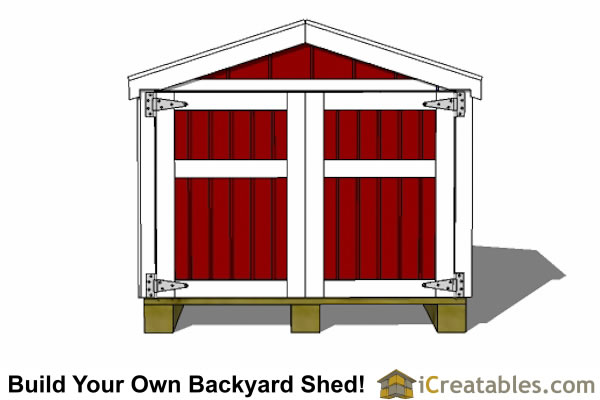

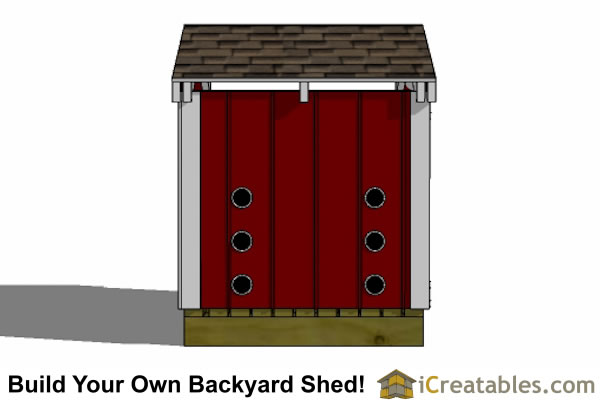

 generator enclosure plansgenerator shed plans reargenerator shed plans

generator enclosure plansGenerator Shed Floor Plan

Generator Shed Floor Plan

Portable Generator Enclosure Plans Example:

portable generator enclosure plans

5'-2"x3'-8" Generator Enclosure Shed Plans Include The Following:

  • Foundation: Wood skid, or the skids can be left off and it can be built on a concrete slab.
  • Floor = 2x4 floor boards with 1/2" gap between them for ventilation.
  • Walls = 2x4 framing
  • Door = The plans show how to make the sandwich construction doors.
  • Roof: The roof is framed using rafters cut to a 4 in 12 pitch. A full sized birdsmouth template is included in the plans.
  • Roof Overhang: 2 1/2" on the eves and 1 1/2" gable ends.
  • Roofing = Asphalt Shingles
  • Siding = T1-11 siding or similar.
  • Trim = 1x4 wood, masonite or cement trim materials.

FREE Shed Materials List (Click To Download and Print)

Free storage shed plans materials list
