5x7 generator enclosure plans with optional doors

5x7 Lean To Shed Plans
sku (shed5x7-LT)

Emailed Plans: $19.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $25.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed.
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 5x7 Generator Enclosure shed plans include:

  • Dimensions - 5'x7' on the exterior. The interior dimensions are 6'-5" long x 4'-5" wide. The lower ceiling side is 4'-3 1/2". The peak of the roof is higher. It was designed for a generator that is 48" long, 32 inches wide and 40 inches high.
  • Doors - Plans are included for two door sizes, either a double door or single door.
  • Side Door Option - Plans are included for the single door to be built on the end wall or the double doors to be built on the longer walls.

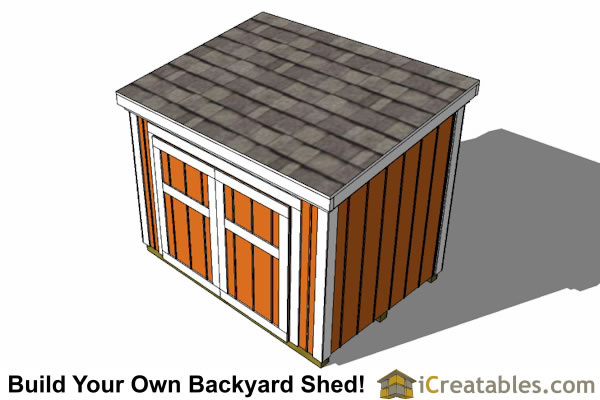

5x7 generator enclosure plans top view5x7 generator enclosure plans elevations5x7 generator enclosure rear view

5x7 generator shed plans with lean to roofOptional Door Configurations

5x7 generator enclosure plans with optional doors5x7 generator enclosure plans with door on tall wall5x7 generator enclosure plans door on short wall

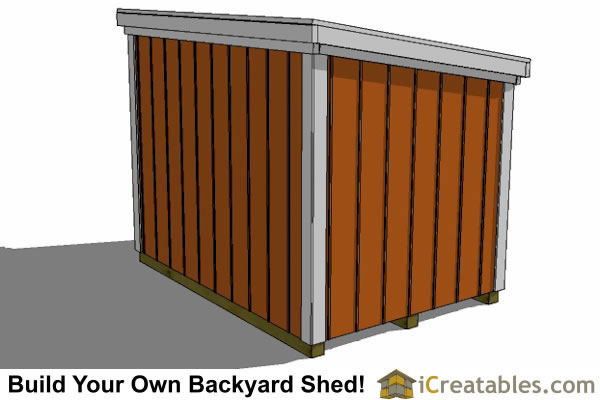

5x7 generator enclosure rear view5x7 Generator Enclosure Shed Floor Plans

4x4 generator shed floor plan

5x7 Generator Enclosure Shed Plans Include The Following:

  • Foundation: Wood skid, or the skids can be left off and it can be built on a concrete slab.
  • Floor = 2x4 floor boards with 1/2" gap between them for ventilation.
  • Walls = 2x4 framing at 16" on center
  • Door = Uses our sandwich construction door for strength.
  • Roof: The roof is framed using 2x4's to build rafters
  • Roof Overhang:3" on the eves and 3" gable ends. The fascia is made using a 2x6 with a 2x4 on top of it. This is a simple to build overhang that looks great.
  • Roofing = 25 year asphalt shingles or metal roofing. Because of the low slop it is recommended to use the roofing manufacturers installation method for low slope roofs.
  • Siding = T1-11 siding or similar.
  • Trim = 1x4 wood, masonite or cement trim materials.
  • Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.

Example Of The 5x7 Genrator Shed Plans
