6x6 lean to shed front

6x6 Lean To Shed Plans
sku (shed6x6-LT)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $20.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 6x6 storage shed plans include:

  • 6'-7" wall height - This is the most cost effective wall height because it saves on material and allows the home built shed door to be on the front or back walls.
  • Home Built Doors - 5'-8" wide and 6' tall home built double doors or 4' wide by 6' tall end door.
  • 3 Foundations - Skid, Concrete Slab, Treated Joists on Gravel Bed

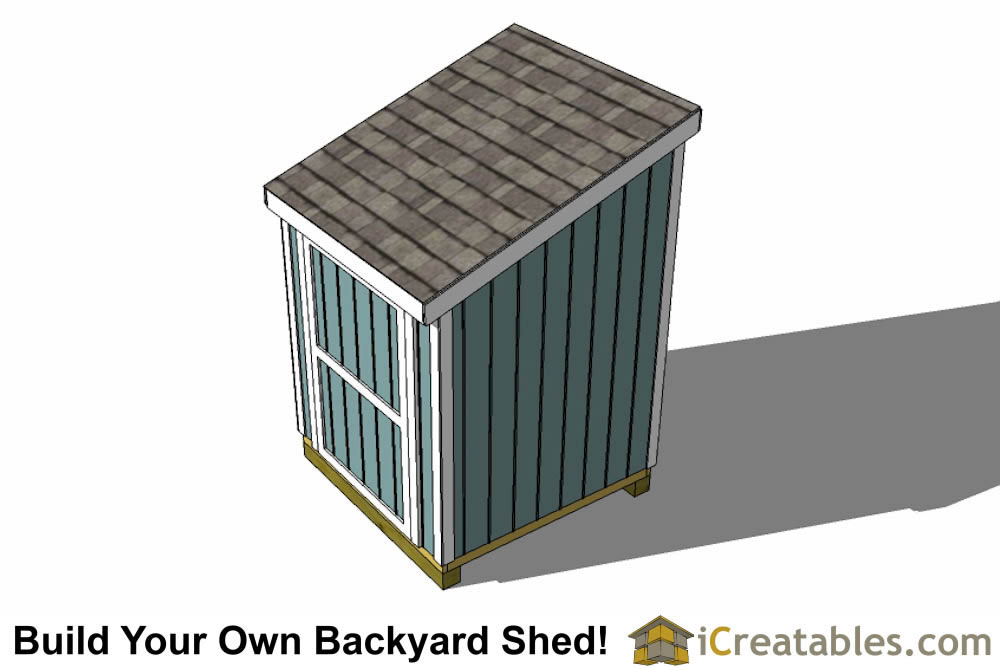

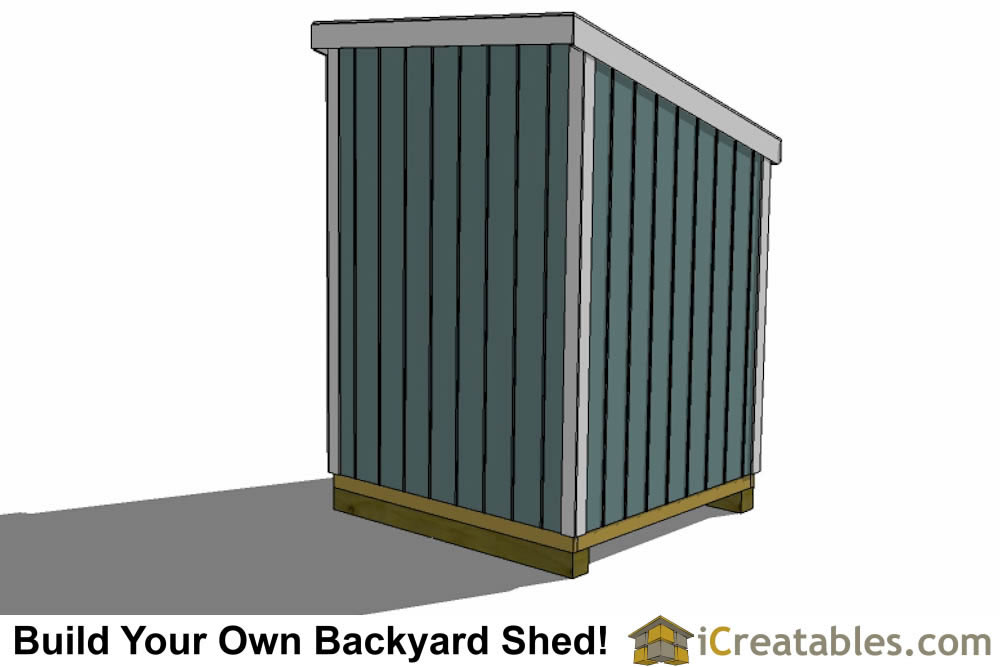

6x6 lean to shed plans top view6x6 lean to shed plans end view6x6 lean to shed plans rear view

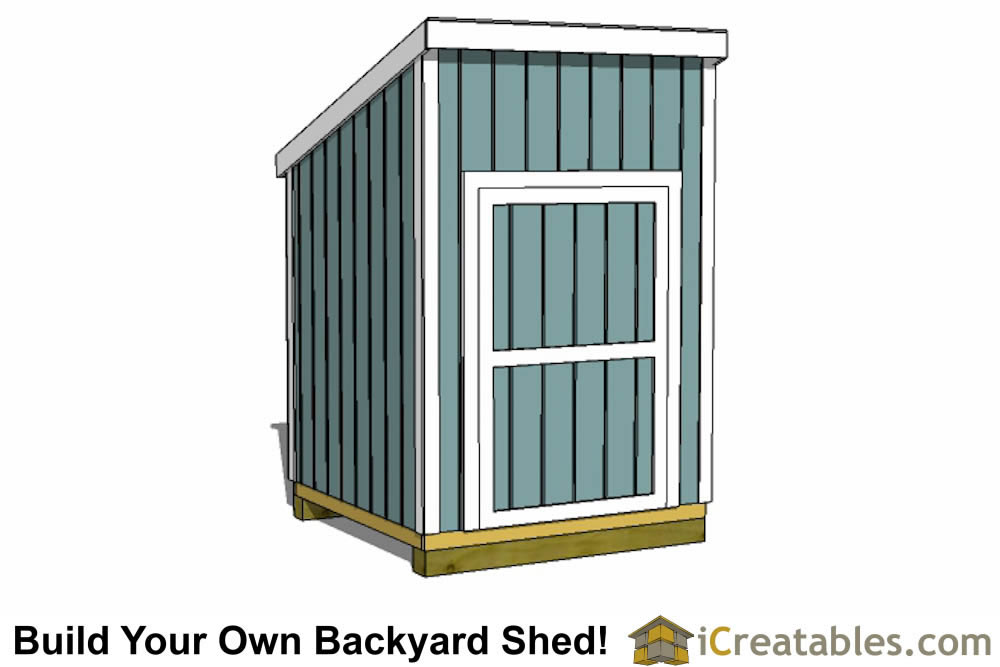

6x6 lean to shed plans end door







Optional Side and Rear Door Plans are Included

6x6 lean to shed plans end door6x6 lean to shed plans door on tall wall

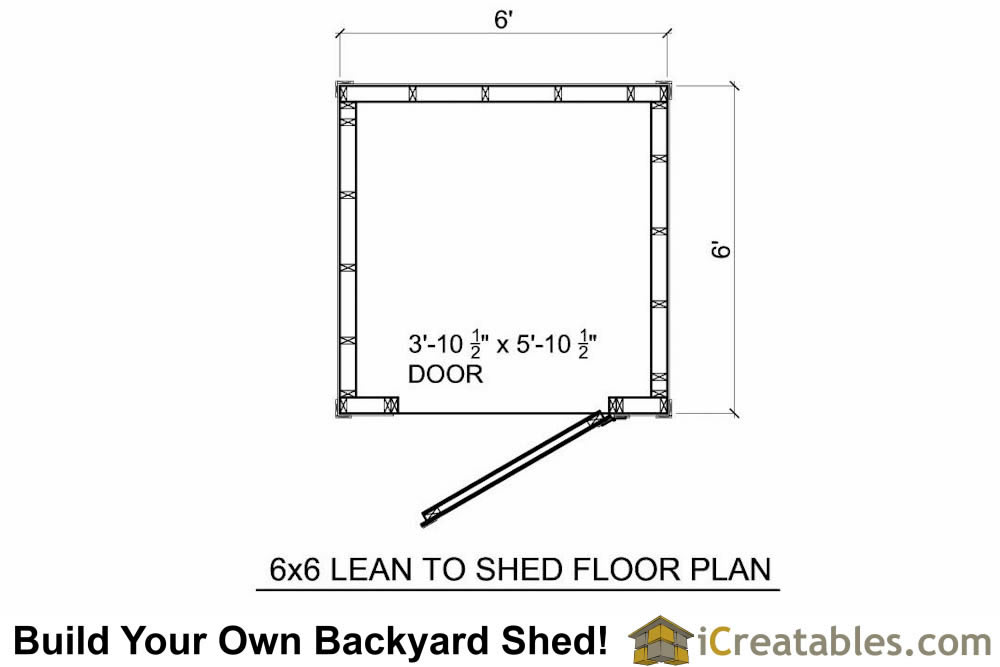

6x6 Lean To Shed Floor Plan

6x6 lean to shed floor plan

Sample of our 6x6 storage shed plans:

6x6 lean to shed plans example

6x6 Lean To Shed Plans Include The Following:

  • Alternalte Options: The shed plans have alternate drawings for the door on the end or sides.
  • Materials List: Included is a complete materials list that is broken down by parts of the shed.
  • 3 Foundations: There are different foundations are included in the plans; Wood skid, Concrete slab and treated lumber or steel studs on gravel bed.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is 6'-7".
  • Door: Home Built Door
    • The door is built using sandwich construction for strength and durability. Our door plan shows you how to build a shed door that will outlive the shed. The shed door is built using a 2x4 inner frame faced on the inside with 1/2" O.S.B. and on the outside there is a layer of T-111 to match the rest of the shed. We use 3 hinges on the doors and the screws go into the inner 2x4 frame of the door to give extra strength.
  • Siding: T-111 exterior siding. Other sidings such as vinyl may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 4" on the sides and 1" on the front and back.
  • Roofing: 25 year asphalt shingles
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
