8x12 short 8 foot  lean to shed plans

8x12 Short Lean To Shed
sku (shed8x12-LT8)

Emailed Plans: $19.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $25.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

This plan is designed to be less than 8' tall to comply with an 8' height restriction.

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.


The 8x12 Lean To shed plans include:

  • 6' 10 1/2" wall height - 6'-10 1/2" Front Wall and 5'-7" Rear Wall heights.
  • Home Built Doors - Door plans are included for the home built door.
  • Treated Wood or Steel Stud Floor - The floor is built using 2x6 treated lumber or steel studs sitting directly on crushed gravel to reduce the overall height.
  • Low Slope Roof: This shed uses a roof slope of 2 in 12. Most asphalt shingle manufacturers require an additional membrane under the shingles for slopes of 2 in 12 inches.

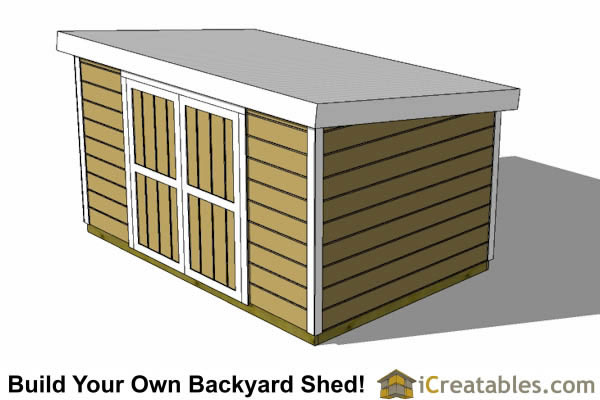

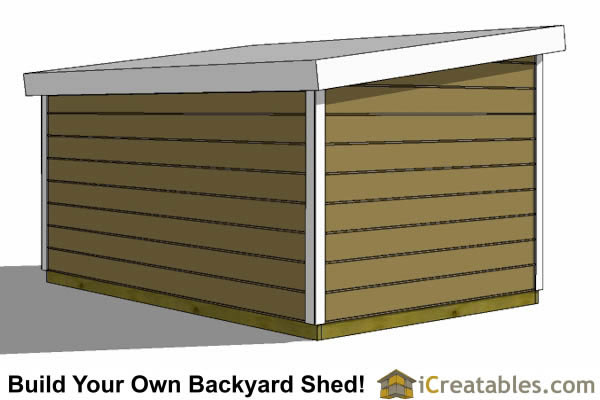

8x12 short 8 foot  lean to shed plans top8x12 short 8 foot  lean to shed plans rear8x12 short 8 foot  lean to shed plans left

8x12 short 8 foot  lean to shed plans frontOptional door configurations included with the lean to shed plans

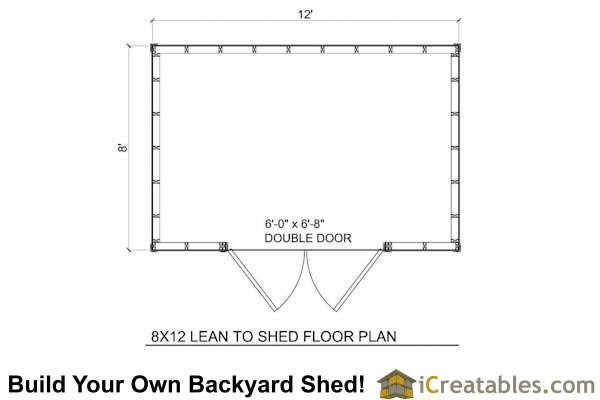

8x12 Lean To Shed Floor Plan

8x12 short 8 foot  lean to shed plans floor plan

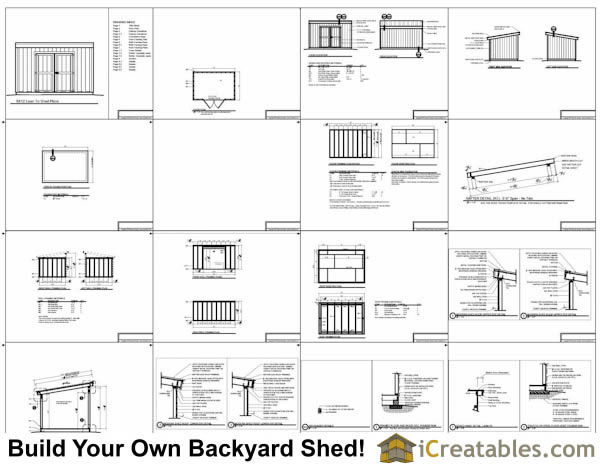

Example of our 8x12 short lean to shed plans.

8x12 short 8 foot  lean to shed plans

8x12 Short Lean To Storage Shed Plans Include The Following:

  • Materials List:The 8x12 Short Lean To shed plans come with a complete materials list that is broken down by parts of the shed.
  • Foundations: The shed foundation is built using crushed gravel to make a bed for the steel stud floor faming to rest on.
  • Floor: 2x6 floor joists at 16" on center with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: 6'-10 1/2" Tall Wall and 5'-7" Rear Lower Wall heights.
  • Doors: Home built door 5'-8" x 5'-10 1/2"
  • Window: There are no windows on the plans but windows can be added on any wall.
  • Siding: Textured Plywood siding is what is shown on the plans. You may add or substitute other sidings such as cedar shingles or horizontal lap siding or vinyl siding.
  • Roof: The roof is framed using 2x6's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you a template and dimensions for the birdsmouth cut angles.
  • Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 6" on the front and back. 1" on the sides.
  • Roofing = Corrugated metal roofing or asphalt shingles with low slope application may be installed
  • Trim = 1x4 wood, masonite or cement trim materials are used to finish the corners, roof eves, facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.

FREE Shed Materials List (Click To Download and Print)

Free storage shed plans materials list
Shed Heights to Meet City Buiilding Code Requirements Click To See The Heights Of Our Shed Plans
