Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
The 8x12 salt box shed plans include:
Multiple Door Options - Large 5' x 6' home built double doors on the front or an optional 4'x6' end door.
Saltbox Design - Besides being a classic New England architectural style it is another shed that is the perfect way to build a shed up against a fence. The saltbox shed is defined by its double roof slope. The front roof pitch is 12/12 and the rear roof pitch is 5/12.
8x12 Saltbox Plans Include:
Foundation = 4 different foundations are included in the plans; Wood skid, Concrete slab, Concrete Pier, Precast pier.
Floor = 2x6 floor joists with 3/4" floor sheathing.
Walls = 2x4 framing at 16" on center with a double top plate, just like a home is framed. The front shed wall height is 6'-6". The rear wall height is 5'-3".
Door = 5'-8" x 5'-9 1/2" doors are built using sandwich construction for strength and durability. There are plans for an optional 4' x 5'-9 1/2" door on the end of the shed.
Roof = The roof is framed using 2x4's and 2x6's to build the trusses. It is sheeted with 1/2" O.S.B. (or 5/8 if you want to make it extra strong.) The plans include full size to cut out the birdsmouth on the rafters.
Roofing = 25 year asphalt shingles
Siding = T1-11 siding or similar 4'x8' wood or cement panel siding is specified but you can use any siding you like.
Trim = 1x3 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.

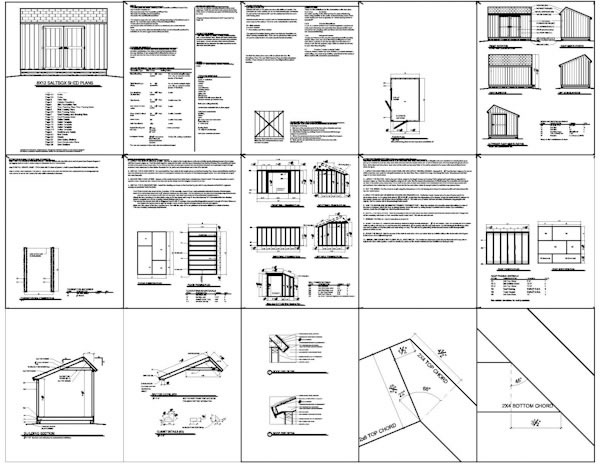

Shed plans example for the 8x12 Saltbox shed.
FREE Shed Materials List (Click To Download and Print)
