Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
Materials List - Easily get bids and use the list numbering system to know what part goes where.
The 8x16 Lean To with open walls storage shed plans include:
Adjustable Height - The plans show 7' to the underside of the beam but you can change the height.
Complete Plans - Plans show rafter cuts, materials list, cut lengths and have step by step instructions.
Concrete Foundation - 12" round concrete footings under the posts.

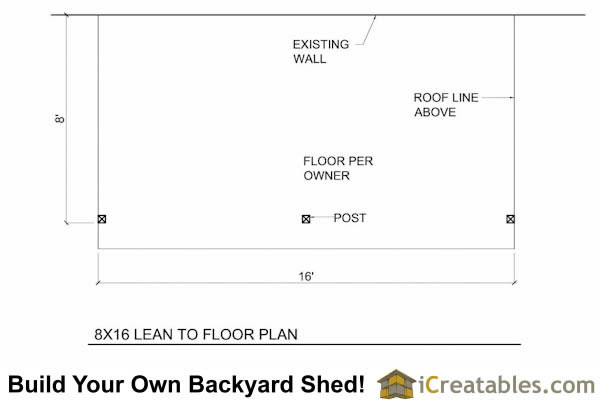

8x16 Lean To Open Wall Shed Floor Plan

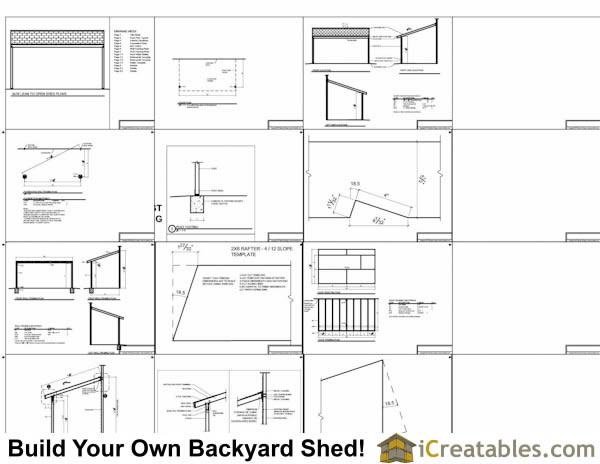

8x16 Lean To Open Sides Shed Plans Include The Following
Foundation: Concrete post bases.
Beam Height: The height of this shed can vary by changing the post length. it is drawn for 7' to the bottom of the beam
Roof = The roof is framed using 2x6's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
Roof Overhang: 14" on the front and 1/2" on the sides.
Roofing = 25 year asphalt shingles.
8x16 Lean To Open Sides Shed Plans Elevations
FREE Shed Materials List (Click To Download and Print)
