8x8 gambrel shed front

8x8 Short Gambrel Shed Plans
sku (shed8x8-GBSW)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $20.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Versionbuy now button
Buy POSTAL-MAILED Versionbuy now button

All Our Shed Plans Feature:

  • FREE - How To Build A Shed eBook included with every shed plans purchase.
  • Cost Effective - Our shed plans are designed to make your shed simple and inexpensive to build.
  • Easy To Build From - Professionally drawn with step by step instructions to show both an old pro or a first time framer how to build a shed. (see the plans example below).
  • Start Now - Instant download - The shed plans are emailed to you when you purchase so you can start immediately. We use the free PDF file format so you can print them on your home printer or we can postal mail them to you.
  • Materials List - Easily get bids and use the list numbering system to know what part goes where.



The 8x8 Gambrel Barn Shed plans include:

  • 8'-0" Total height - The 8' overall height is achieved by using a treated lumber floor system on a gravel bed. This eliminates the foundation rails. The shed walls are 3'-8" tall.
  • Home Built Door - Build your own custom door using detailed door building plans
  • Gravel Foundation -The foundation is made by using a gravel bed.

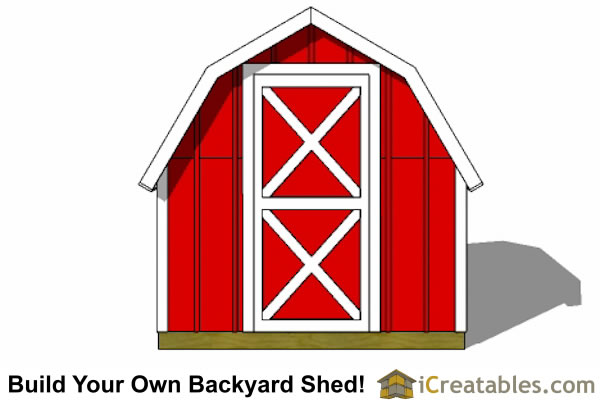

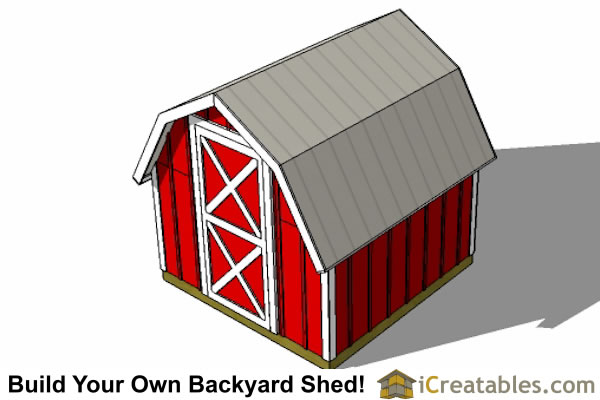

8x8 gambrel shed plans rear8x8 gambrel shed plans top8x8 gambrel shed plans end

8x8 gambrel shed front8x8 Gable Shed Plans Floor Plan

8x8 shed plan floor plans

How To Frame a Gambrel Roof Rafter Watch and learn how to frame a gambrel roof rafter or gambrel roof truss for the 8x8 gambrel shed plan with short walls.

8x8 Gambrel Shed Plans Include The Following:

  • Materials List:The 8x8 gambrel shed barn plans come with a complete materials list that is broken down by parts of the shed.
  • Foundation: The foundation is made by leveling a bed of crushed gravel. The floor framing sets directly on top of the gravel bed.
  • Floor: Pressure treated 2x6 floor joists with 3/4" Pressure treated floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is 5'-4". The gambrel barn roof makes the height inside over 9' tall!
  • Door: 2'-9" x 5'-9 1/2" door is built using sandwich construction for strength and durability. The shed door is built using a 2x4 inner frame faced on the inside with 1/2" O.S.B. and on the outside there is a layer of T-111 to match the rest of the shed. We use 3 hinges on the doors and the screws go into the inner 2x4 frame of the door to give extra strength.
  • Siding: T-111 exterior siding. Other sidings such as vinyl or board and batten may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: The gambrel roof has a double roof pitch.
  • Roof Overhang: 6" on the eves and soffits
  • Roofing: Asphalt shingles.
  • Trim: 1x4 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.

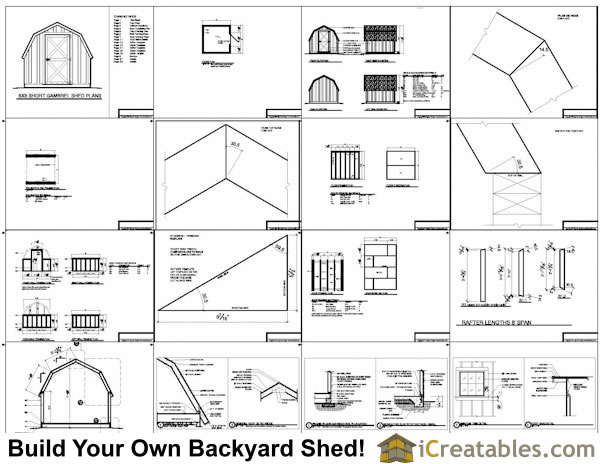

8x8 Short Gambrel Shed Plans Example:

8x8 gambrel shed plans

FREE Shed Materials List (Click To Download and Print)

Free storage shed plans materials list
